Description:

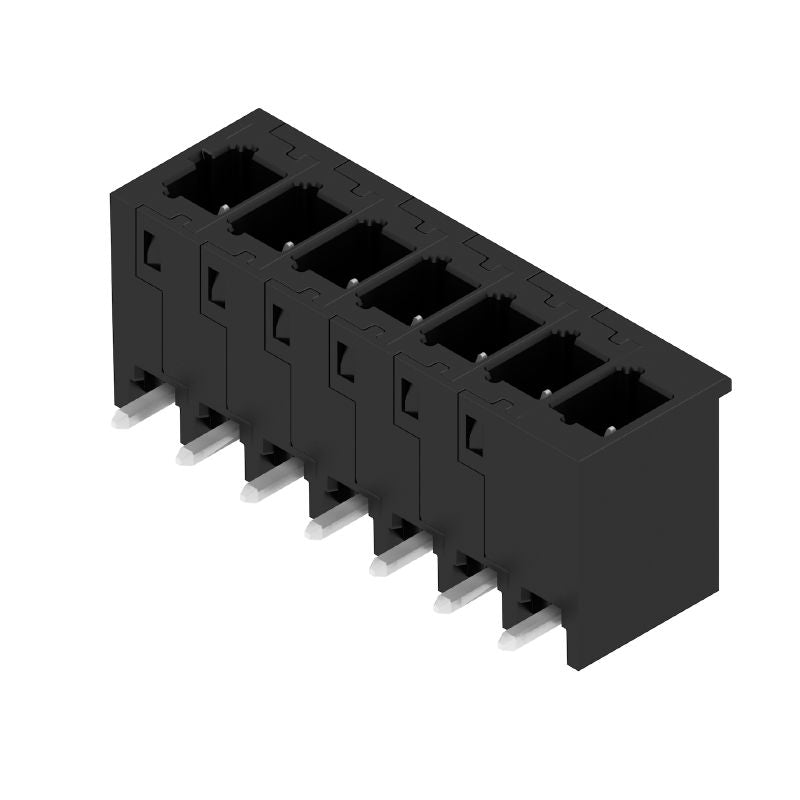

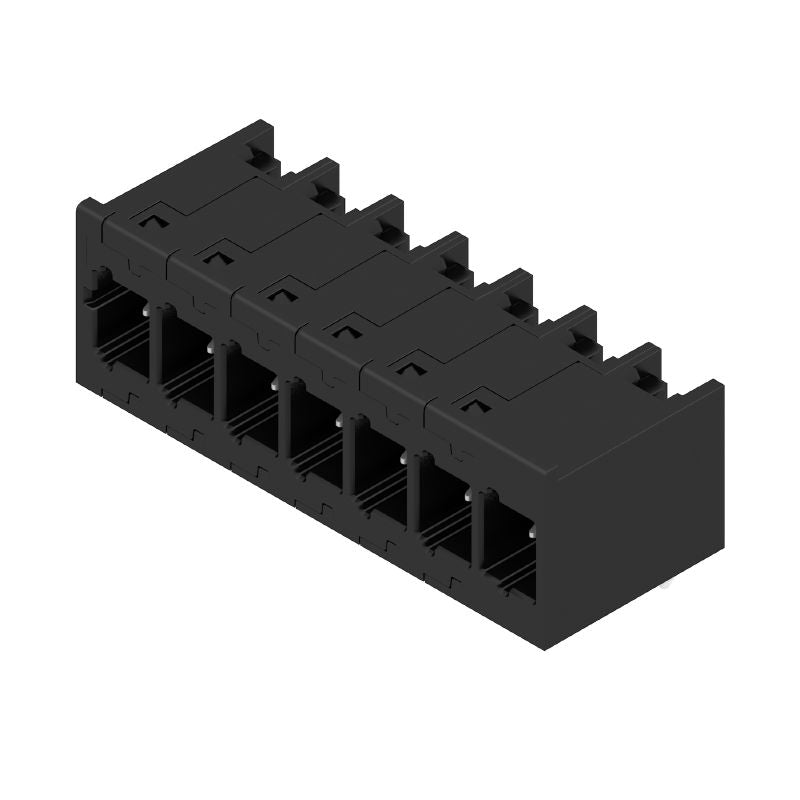

Introducing the MHS 5/07 H T3 B T male PCB plug-in connector, featuring an efficient THT/THR solder connection method With a 500 mm pitch and 7 poles set at a convenient 90° angle, this connector is built to meet IEC specifications of 400 V and 268 A, as well as UL standards of 300 V and 185 A Delivered in a tube, this component is also RoHS compliant, ensuring environmentally friendly use without any exemptions.
Features and Benefits:
•Compact design with 90° outgoing elbow.
•Touch-safe protection according to DIN VDE standards.
•UL and IEC compliance.
Specifications:

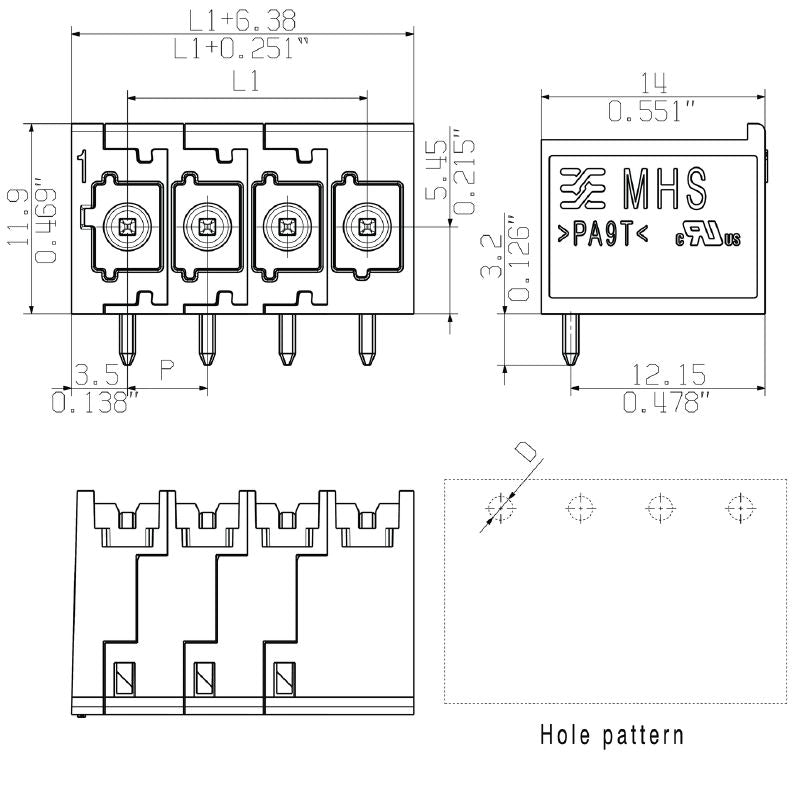

| Depth | 14 mm |
| Height | 15.1 mm |
| Width | 36.38 mm |
| Ambient Temperature | -50 °C…125 °C |
| Solder Pin Length | 3.2 mm |
| Number of Solder Pins per Pole | 1 |
| Volume Resistance | ≤5 mΩ |
| Plugging Cycles | ≥ 25 |
| Insulating Material | PA 9T |
| CTI | ≥ 600 |
| Impact Protection | IP20 |
| Storage Temperature Min | -25 °C |
| Storage Temperature Max | 55 °C |
| Operating Temperature Min | -50 °C |
| Operating Temperature Max | 100 °C |
| Rated Current (Tu=20°C) | 26.8 A |
| Rated Voltage | 400 V |
| Contact Base Material | CuMg |
