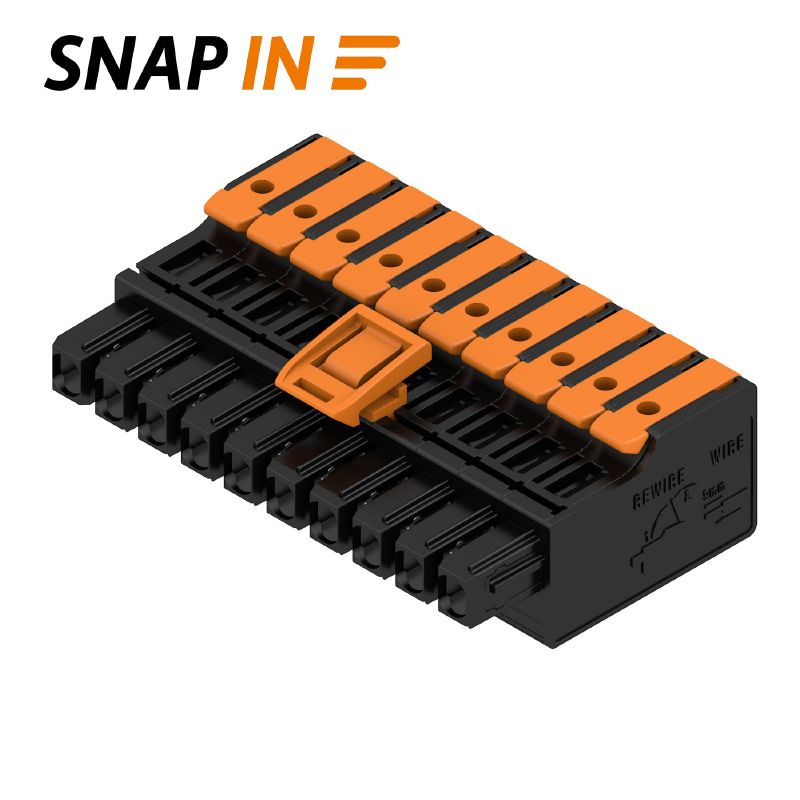

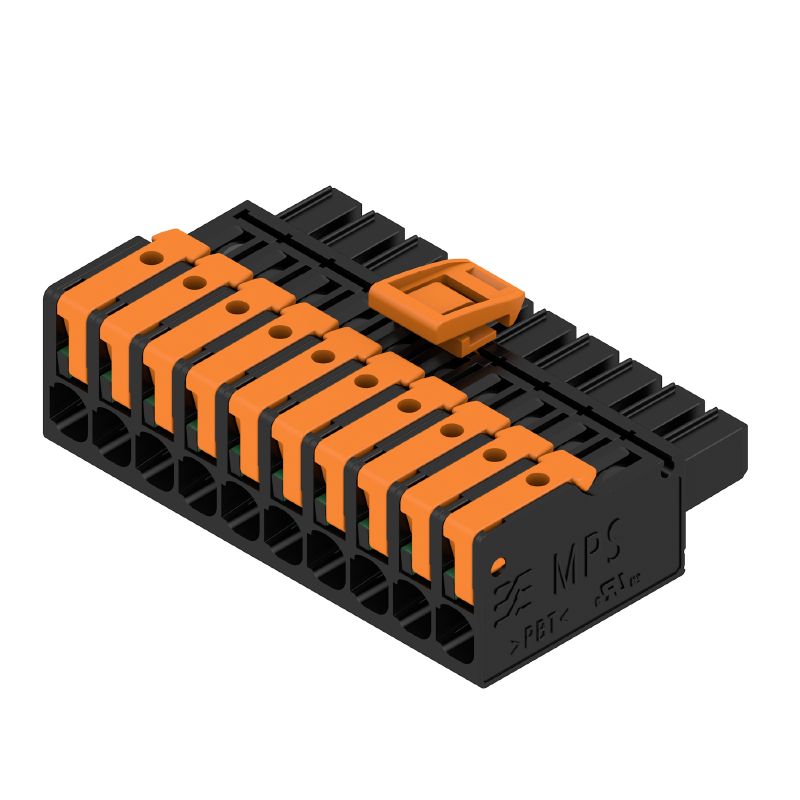

2741750000 - 5mm Female PCB Connector, 10 Poles, 400V Rated, 36 Pack (Pack of 36)
2741750000 - 5mm Female PCB Connector, 10 Poles, 400V Rated, 36 Pack (Pack of 36)
SKU: SKU: 2741750000 Download PDF
- 2741750000 - 5mm Female PCB Connector, 10 Poles, 400V Rated, 36 Pack (Pack of 36)
- 2741750000 - 5mm Female PCB Connector, 10 Poles, 400V Rated, 36 Pack (Pack of 36)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the female PCB plug-in connector with a pitch dimension of 500 mm, capable of accommodating 10 poles with a 180° configuration This reliable connector adheres to IEC standards, supporting a voltage rating of 400 V and a current strength of 268 A, while also meeting UL standards for 300 V and 185 A Packaged conveniently in a box, this connector set includes 36 individual units, making it an excellent choice for your electrical projects.
Features and Benefits:
•Compliant with RoHS.
•Easy field connection through SNAP IN with lever.
•Touch-safe protection ensuring safety from finger contact.
•Compact design ideal for PCB applications.
•Long operating temperature range from -50 °C to 125 °C.

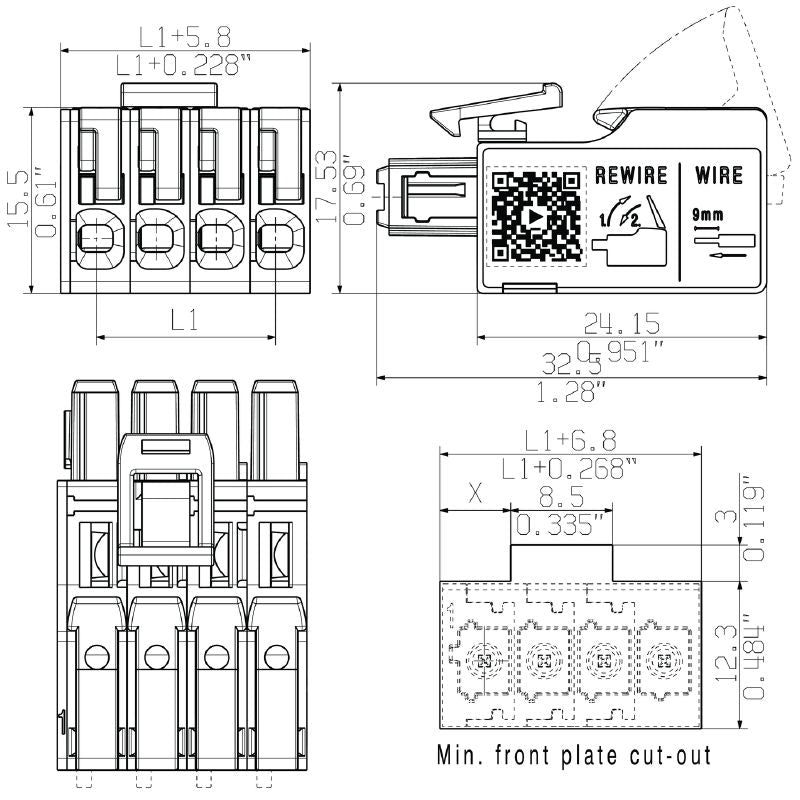

Specifications:
| Depth | 34 mm |
| Height | 17.5 mm |
| Width | 50.8 mm |
| Ambient temperature | -50 °C to 125 °C |
| Operating temperature | -50 °C to 125 °C |
| Storage temperature | -25 °C to 55 °C |
| Pitch | 5 mm |
| Number of poles | 10 |
| Volume resistance | ≤5 mΩ |
| Protection degree | IP20 |
| Insulating material | PBT GF |
| Contact material | Cu-alloy |
| UL voltage rating | 300 V |
| Clamping range (max) | 4 mm² |
| Clamping range (min) | 0.34 mm² |
