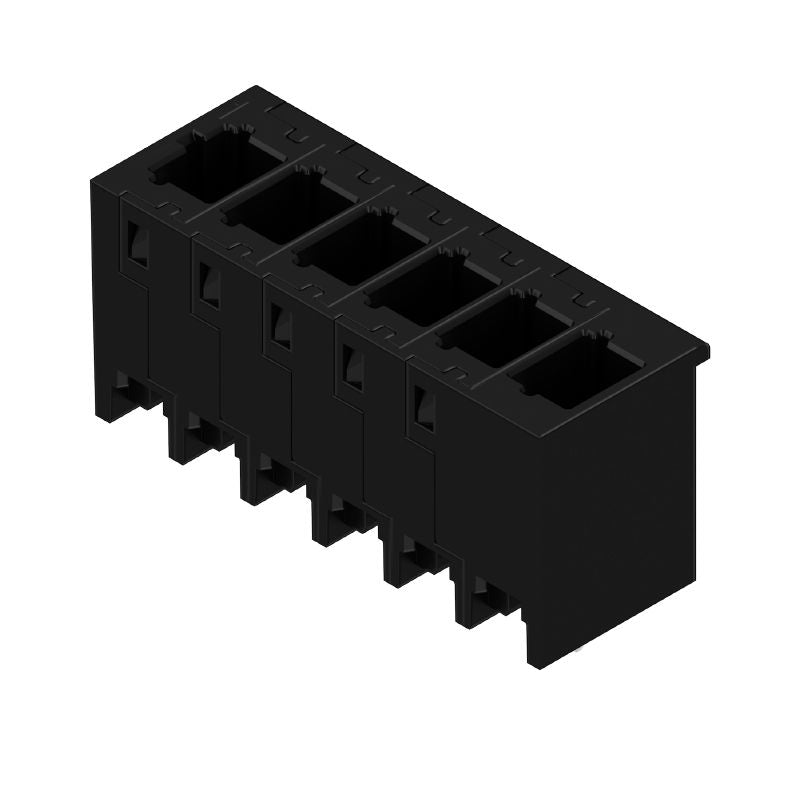

8000072438 - 6 Pole 5mm PCB Connector, 180° Angle, UL Certified (Pack of 17)
8000072438 - 6 Pole 5mm PCB Connector, 180° Angle, UL Certified (Pack of 17)
SKU: SKU: 8000072438 Download PDF
- 8000072438 - 6 Pole 5mm PCB Connector, 180° Angle, UL Certified (Pack of 17)
- 8000072438 - 6 Pole 5mm PCB Connector, 180° Angle, UL Certified (Pack of 17)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing a robust male header PCB plug-in connector, expertly crafted for reliable performance This connector features THT/THR soldering connections with a 500 mm pitch and includes 6 poles designed for 180° alignment It meets stringent RoHS compliance standards and is UL certified, bearing the cURus Certificate No E60693 With a voltage rating of 400 V and a maximum current capacity of 253 A in accordance with IEC specifications, this connector is built for high reliability across a variety of applications.
Features and Benefits:
•RoHS compliant.
•UL certified.
•Touch-safe protection.
•High-quality insulation material.
•High maximum current rating.

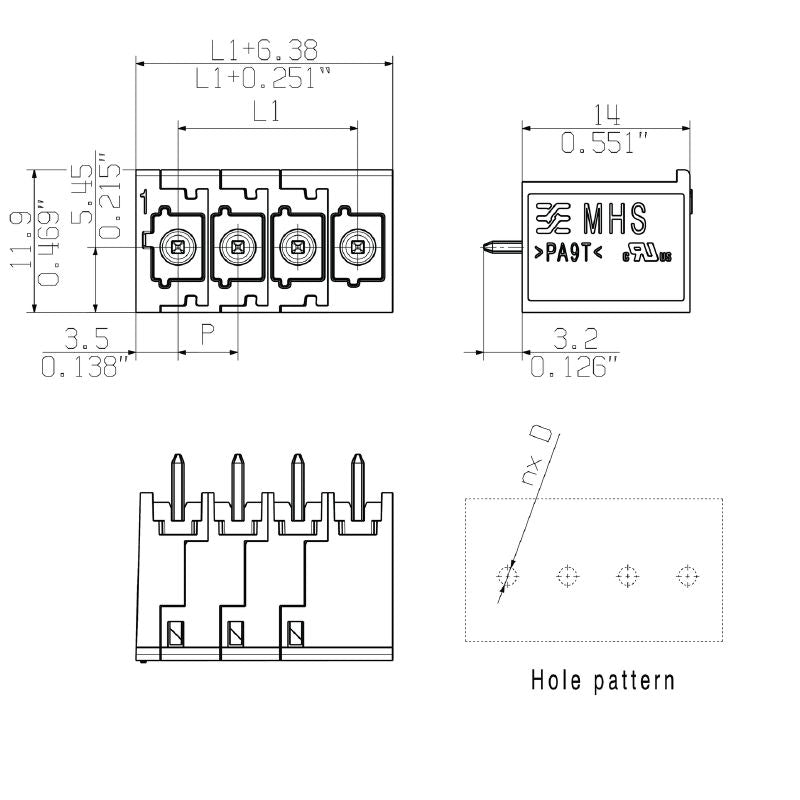

Specifications:
| Pitch in mm | 5.00 mm |
| Number of poles | 6 |
| Depth | 11.9 mm |
| Height | 17.2 mm |
| Width | 31.38 mm |
| Ambient temperature | -50 °C…125 °C |
| Solder pin length | 3.2 mm |
| Volume resistance | ≤5 mΩ |
| Plugging cycles | ≥ 25 |
| Insulating material | PA 9T |
| Contact base material | CuMg |
| Rated current, max. | 25.3 A |
| Rated voltage | 400 V |
