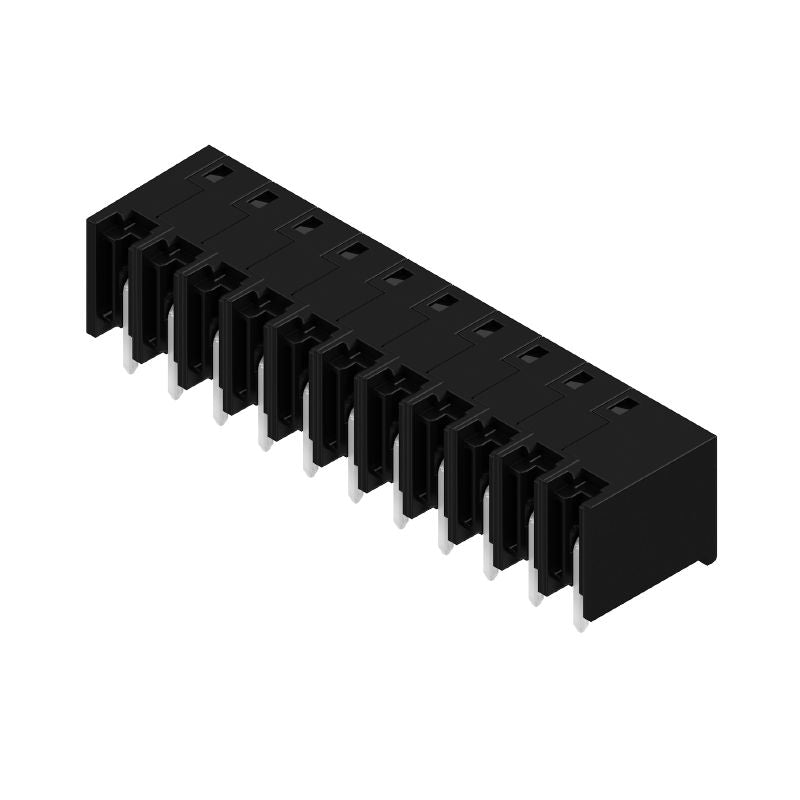

8000072514 - 11-Pole 5mm Male Header Connector, RoHS/UL Certified (Pack of 9)
8000072514 - 11-Pole 5mm Male Header Connector, RoHS/UL Certified (Pack of 9)
SKU: SKU: 8000072514 Download PDF
- 8000072514 - 11-Pole 5mm Male Header Connector, RoHS/UL Certified (Pack of 9)
- 8000072514 - 11-Pole 5mm Male Header Connector, RoHS/UL Certified (Pack of 9)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing a robust male header PCB plug-in connector crafted for THT/THR soldering This connector features an easy-to-handle 500 mm pitch with an 11-pole design angled at 270° It meets RoHS compliance and holds UL certification, making it versatile for a variety of uses Engineered to endure temperatures ranging from -50 °C to 125 °C, this connector is rated for voltages of 400 V and currents of 26.
8 A per IEC standards, as well as 300 V and 185 A per UL standards It comes securely packaged in a tube and weighs only 8657 grams, ensuring streamlined handling and storage.
Features and Benefits:
•Compliant with RoHS without exemption.
•Touch-safe protection above the printed circuit board.
•IP20 protection degree.
•Plugging cycles ≥ 25.
•Moisture Level 1.

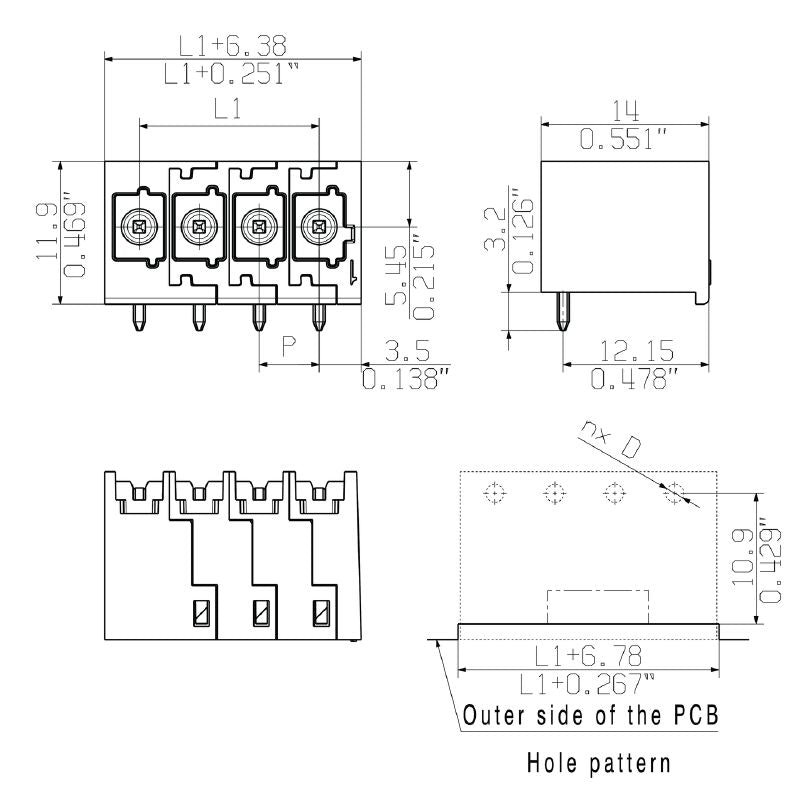

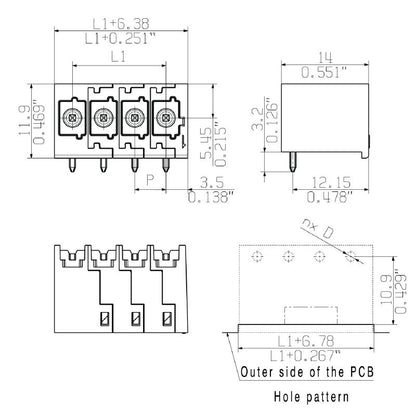

Specifications:
| Depth | 14 mm |
| Height | 14.1 mm |
| Width | 56.38 mm |
| Ambient temperature | -50 °C…125 °C |
| Pitch in mm | 5 mm |
| Number of poles | 11 |
| Solder pin length | 3.2 mm |
| Contact base material | CuMg |
| Insulating material | PA 9T |
| UL 94 flammability rating | V-0 |
| Rated voltage | 300 V |
| Rated current | 18.5 A |
| Volume resistance | ≤5 mΩ |
| Storage temperature, min. | -25 °C |
| Storage temperature, max. | 55 °C |
| Operating temperature, min. | -50 °C |
| Operating temperature, max. | 100 °C |
