Description:

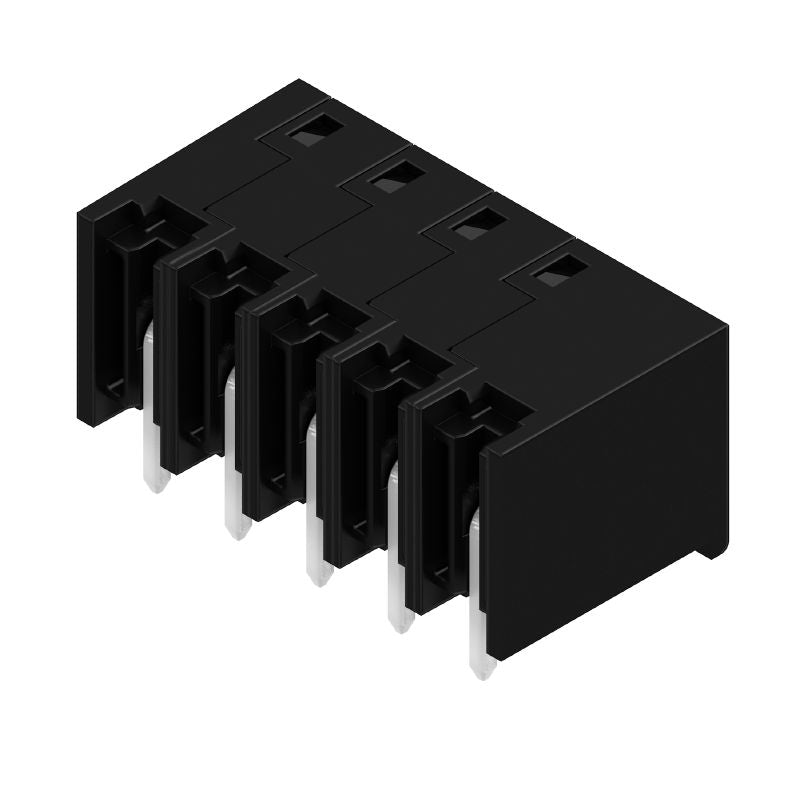

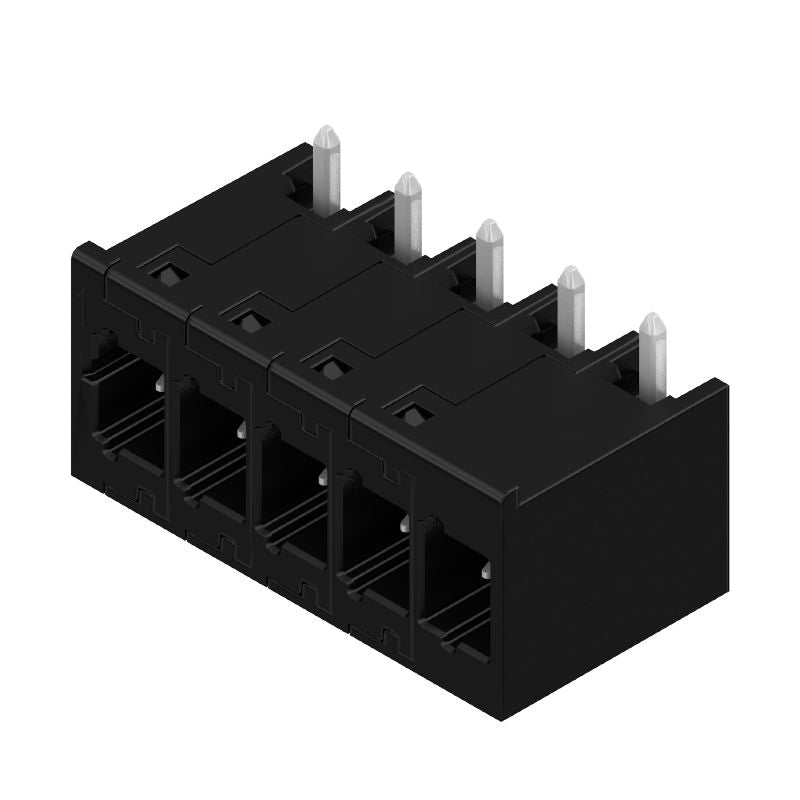

Introducing this robust male header PCB plug-in connector, featuring THT/THR solder connections designed for a 500 mm pitch With the ability to accommodate 5 poles positioned at a 270° angle, this connector is conveniently packaged in tubes It also meets both UL and RoHS compliance standards, ensuring safety and quality.
Features and Benefits:
•Complies with RoHS and UL standards.
•Ambient temperature range from -50 °C to 125 °C.
•Touch-safe protection according to DIN VDE 57 106 and 0470.
•Low volume resistance of ≤5 mΩ.
•Durable with ≥ 25 plugging cycles.
Specifications:
| IEC Rated Voltage | 400 V |
| UL Rated Voltage | 300 V |
| Number of Poles | 5 |
| Solder Pin Length | 3.2 mm |
| Pitch | 5 mm |
| Protection Degree | IP20 |
| Storage Temperature Min | -25 °C |
| Storage Temperature Max | 55 °C |
| Insulating Material | PA 9T |
| Contact Base Material | CuMg |
| UL 94 Flammability Rating | V-0 |
| Rated Current Min (Tu=20°C) | 26.8 A |
| Rated Current Max (Tu=20°C) | 19.7 A |
| Rated Impulse Voltage | 4 kV |
| Clearance Min | 4 mm |
| Creepage Distance Min | 5.4 mm |
