Description:

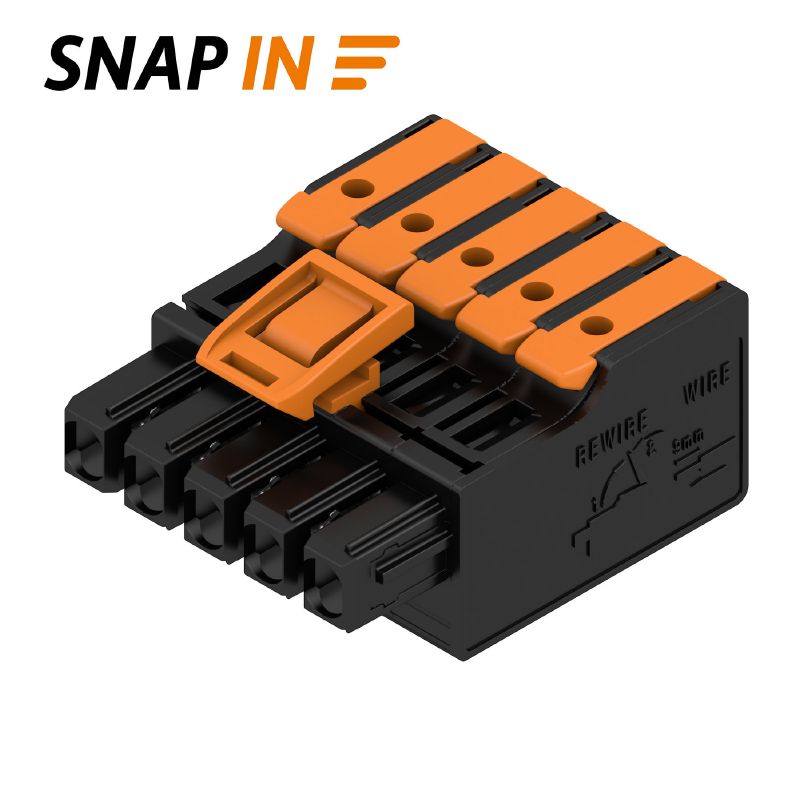

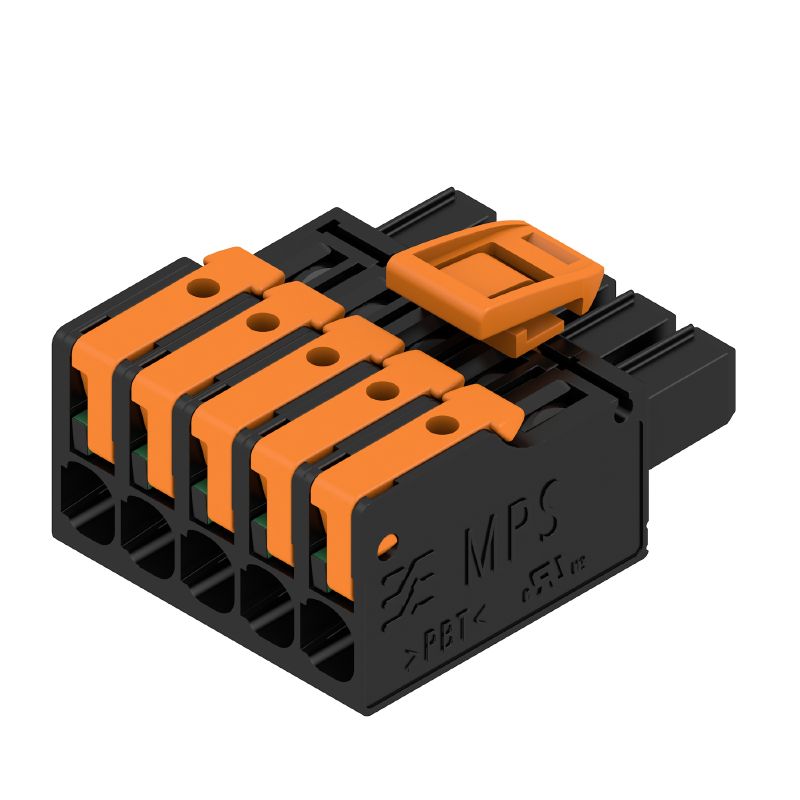

Introducing a premium female PCB plug-in connector, featuring a 500 mm pitch and equipped with 5 poles This connector adheres to ROHS standards and holds UL certification, ensuring its safety and reliability Designed to operate at 400 V, it can support a maximum current of 268 A according to IEC guidelines The compact packaging includes a box for easy transport
Engineered for efficient field connections, this connector utilizes an intuitive SNAP IN system with a lever for secure connections.
With dimensions of 34 mm in depth, 175 mm in height, and 258 mm in width, it easily fits in various setups Its robust construction guarantees longevity, while the safety-focused design complies with relevant operational standards, making it a reliable choice for your electronic projects.
Features and Benefits:
•Complies with ROHS and REACH regulations.
•Designed for field connections and easy installation with a lever.
•Touch-safe protection to prevent accidental contact.
•Compact dimensions suitable for diverse installations.
Specifications:
| Depth | 34 mm |
| Height | 17.5 mm |
| Width | 25.8 mm |
| Net weight | 13.066 g |
| Ambient temperature range | -50 °C…125 °C |
| Insulating material | PBT GF |
| Color | black |
| Rated voltage (IEC) | 400 V |
| Rated current (IEC) | 26.8 A |
| Rated voltage (UL) | 300 V |
| Rated current (UL) | 18.5 A |
| Protection degree | IP20 |
| Pitch | 5 mm |
| Number of poles | 5 |
| Stripping length | 9 mm |
| Plugging cycles | 25 |
| Volume resistance | ≤5 mΩ |
