2790440000 - 5mm Pitch PCB Plug-In Connector for Female Connections (Pack of 168)
2790440000 - 5mm Pitch PCB Plug-In Connector for Female Connections (Pack of 168)
SKU: SKU: 2790440000 Download PDF
- 2790440000 - 5mm Pitch PCB Plug-In Connector for Female Connections (Pack of 168)
- 2790440000 - 5mm Pitch PCB Plug-In Connector for Female Connections (Pack of 168)
Couldn't load pickup availability
Description:

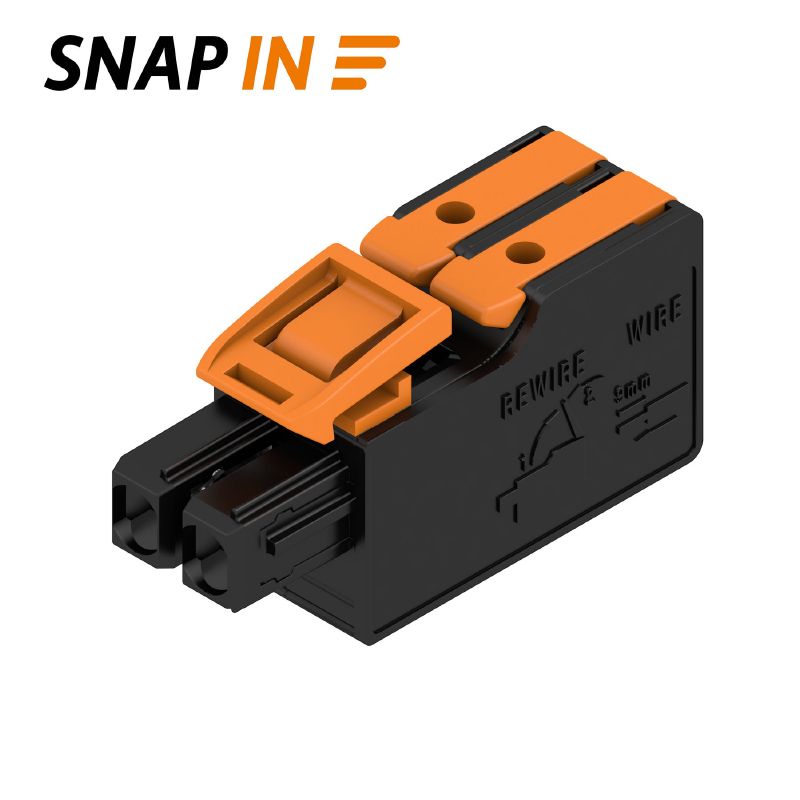

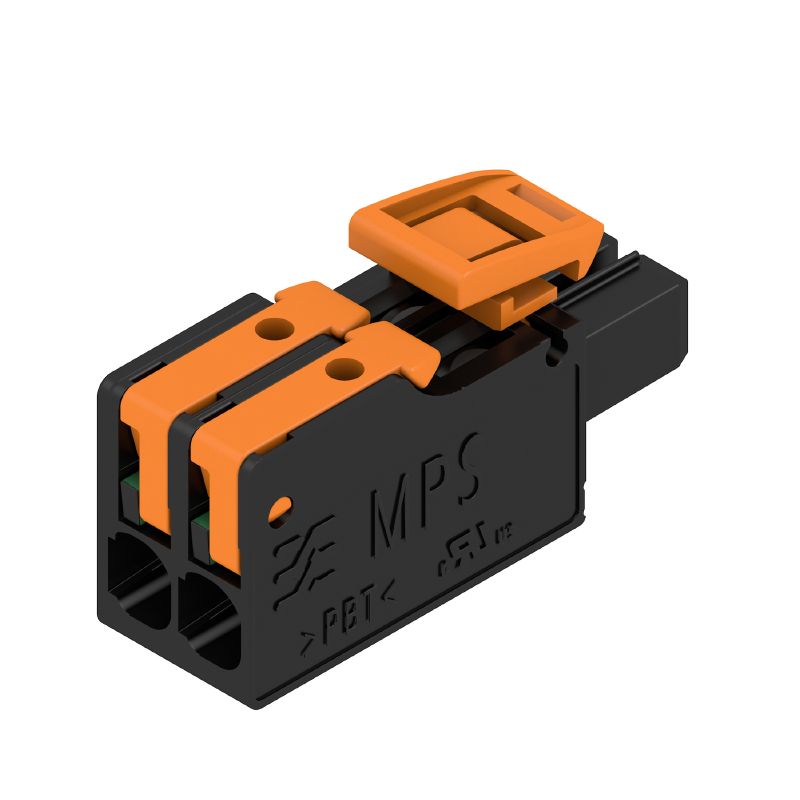

Introducing the MPS 5/02 S F1 TN B B D, a reliable PCB plug-in connector tailored for female connections It features a 500 mm pitch and consists of 2 poles Compliant with IEC standards, this connector supports voltages up to 400 V and currents of 268 A, while also meeting UL standards with a rating of 300 V and 185 A Packaged conveniently in a box for easy handling, it accommodates a range of conductor cross-sections from 0.
5 mm² to 4 mm², making it versatile for various applications.
Features and Benefits:
•Complies with RoHS standards without exemption.
•Touch-safe protection according to DIN VDE standards.
•SNAP IN wire connection method for ease of use.
•Insulating material is PBT GF for durability.
•IP 20 protection degree.
•Minimum of 25 plugging cycles for reliability.
Specifications:
| Depth | 34 mm |
| Height | 17.5 mm |
| Width | 10.8 mm |
| Net weight | 5.695 g |
| Ambient temperature | -50 °C to 125 °C |
| Material data | Insulating material: PBT GF, Contact material: Cu-alloy |
| Conductor outlet direction | 180° |
| Stripping length | 9 mm |
| Operating temperature | -50 °C to 100 °C |
| Volume resistance | ≤5 mΩ |
| Pitch in mm (P) | 5 mm |
| Stripping length tolerance | min: 8 mm, max: 10 mm |
| Touch-safe protection acc. to DIN VDE | Safe from finger touch |
| UL voltage rating | 300V |
