Description:

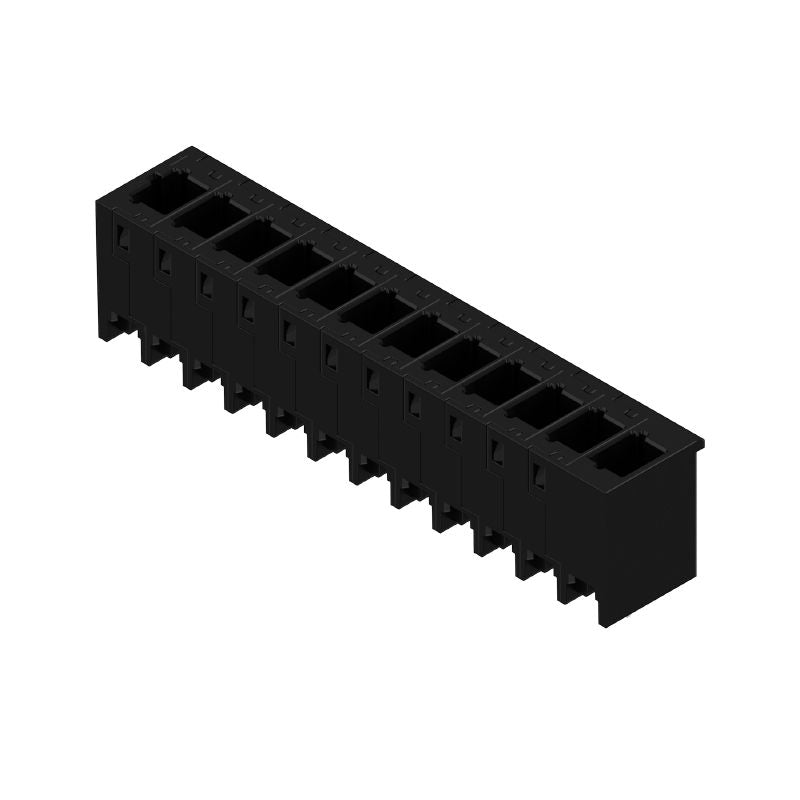

Introducing the MHS 5/12 V T3 B T PCB connector, an efficient solution featuring a male header with THT/THR soldering capability With a 500 mm pitch, this connector accommodates 12 poles positioned at a convenient 180° angle It meets ROHS compliance and adheres to UL standards, ensuring reliability Part of the OMNIMATE 40 product line, it is offered in packages of 8 units, all neatly contained in a tube for easy handling.
Features and Benefits:
•Compliant with RoHS without exemption.
•Touch-safe protection above the printed circuit board according to DIN VDE 57 106.
•Plugging cycles rated at 25 or more.
•Low volume resistance.
•Rated current between 18 A and 25.3 A depending on the conditions.

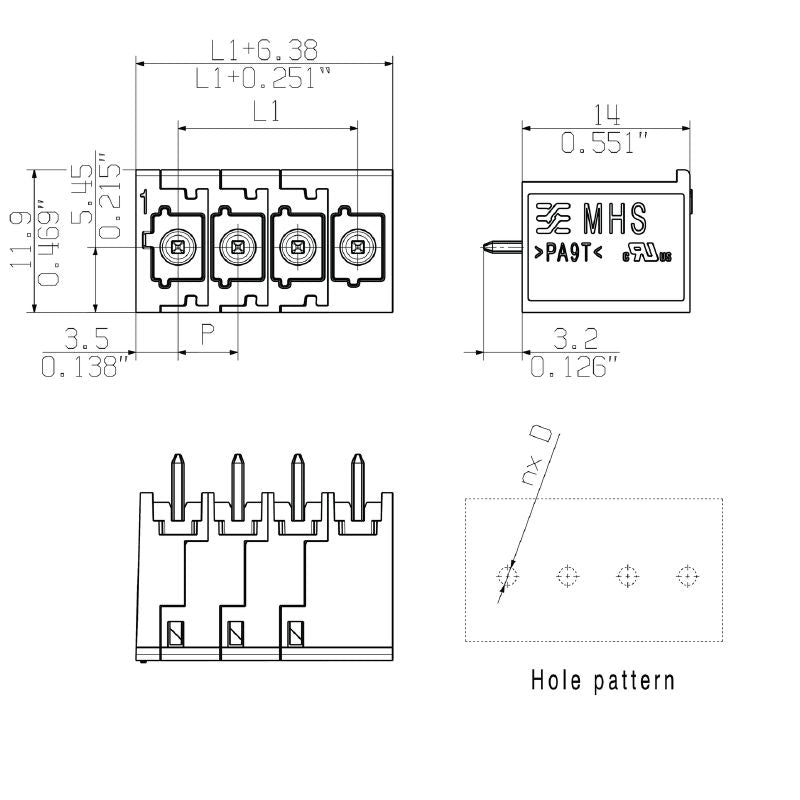

Specifications:
| IEC Rating | 400 V / 25.3 A |
| UL Rating | 300 V / 18.5 A |
| Depth | 11.9 mm |
| Height | 17.2 mm |
| Width | 61.38 mm |
| Ambient Temperature | -50 °C...125 °C |
| Number of poles | 12 |
| Solder pin length | 3.2 mm |
| Max Plugging Force | 8.5 N |
| Material | PA 9T |
| Contact Base Material | CuMg |
| Rated Voltage (Pollution Degree II) | 400 V |
| Rated Current (20°C) | 25.3 A |
| Storage Temperature Min | -25 °C |
| Storage Temperature Max | 55 °C |
