Description:

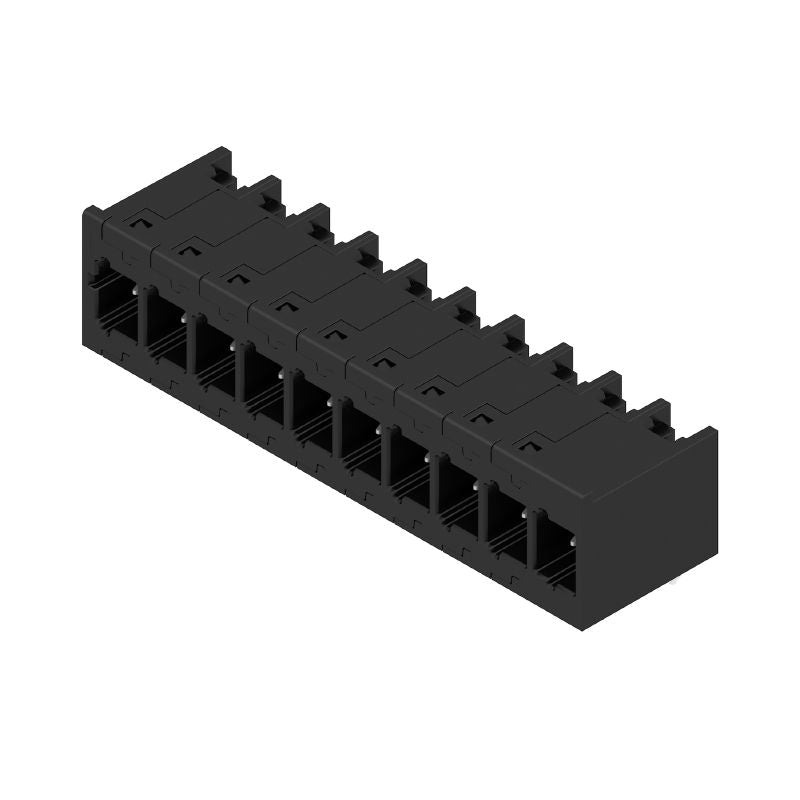

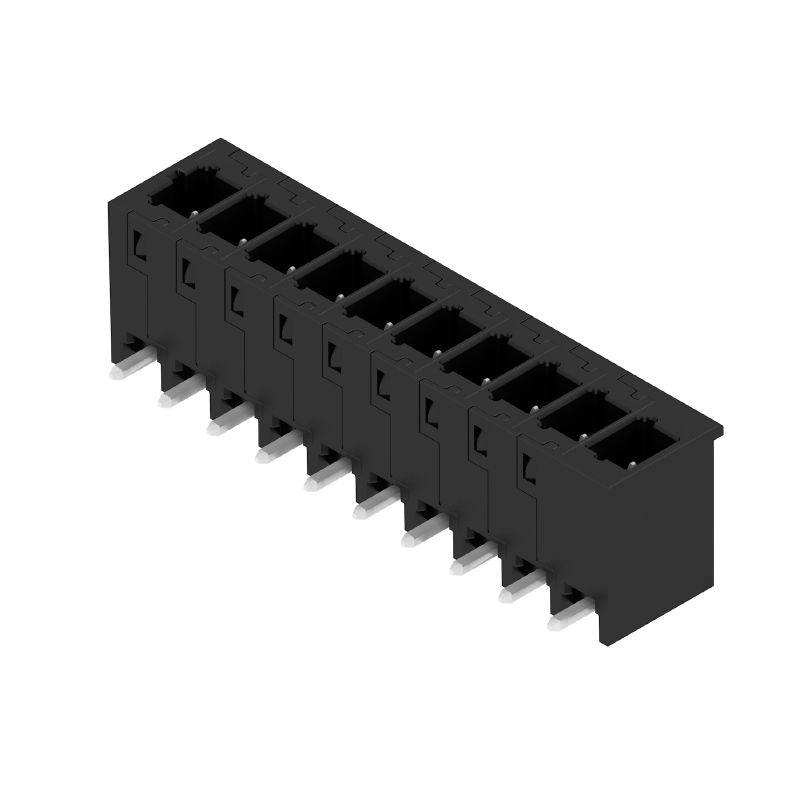

Introducing the MHS 5/10 H T3 B T male header PCB connector, an essential component for THT/THR solder connections With a pitch of 500 mm and a configuration of 10 poles at a 90° angle, this connector ensures reliable performance in various applications It adheres to ROHS standards and features UL certification for added safety and compliance Each connector is conveniently packaged in a tube, weighs approximately 7.
893 grams, and is capable of operating in extreme temperatures ranging from -50 °C to 125 °C Perfect for your electronic projects and installations.
Features and Benefits:
•Compliant with RoHS standards.
•UL certified.
•Touch-safe protection as per DIN VDE 57 106.
•Plugging cycles rated for a minimum of 25.
•Moisture Level (MSL) of 1.

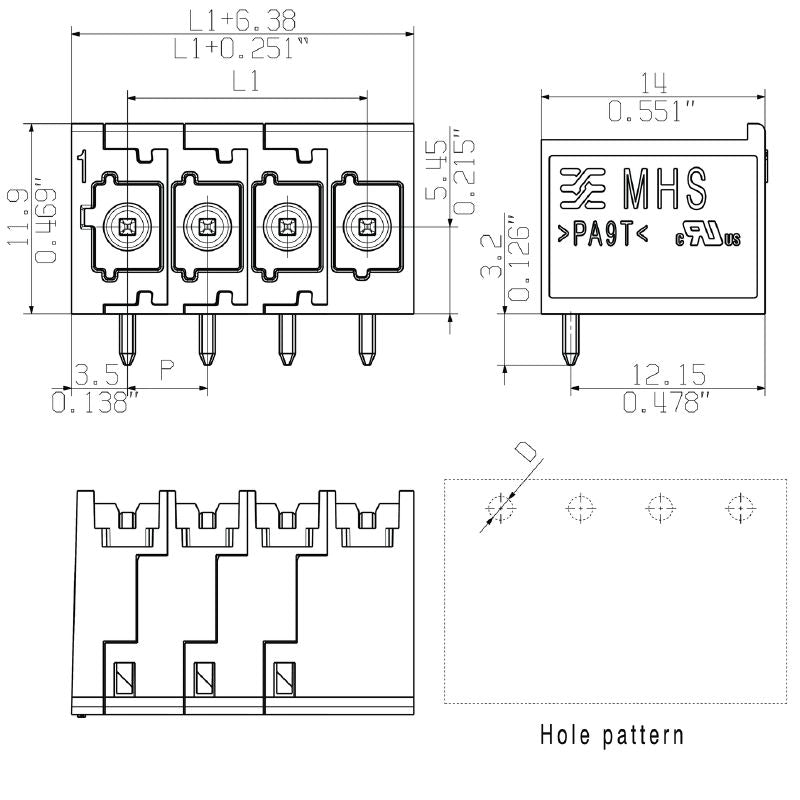

Specifications:
| Depth | 14 mm |
| Height | 15.1 mm |
| Width | 51.38 mm |
| Rated Voltage (IEC) | 400 V / 300 V (UL) |
| Rated Current (IEC, 20°C) | 26.8 A |
| Rated Current (UL) | 18.5 A |
| Pitch in mm | 5 mm |
| Number of poles | 10 |
| Outer diameter of solder pad | 2.3 mm |
| Creepage distance, min. | 5.4 mm |
| Clearance distance, min. | 4 mm |
| Solder pin length | 3.2 mm |
| Insulating material | PA 9T |
| IP degree of protection | IP20 |
| Temperature range | -50 °C to 125 °C |
| Net weight | 7.893 g |
| Color chart | RAL 9011 |
