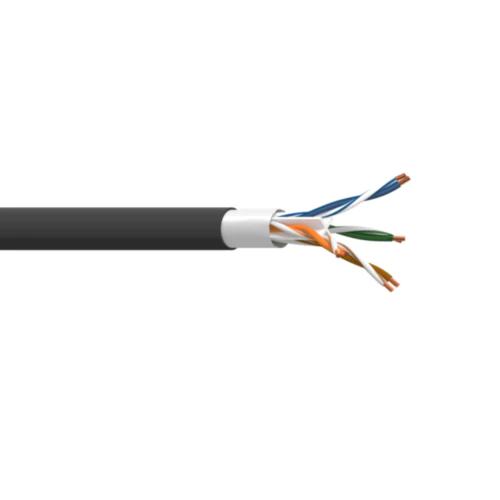

Belden IEA001 23 AWG 4 Pair Solid Bare Copper 300V DataTuf Cable

Description:-

4 Bonded-Pair, U/UTP-Unshielded, Category 6A, Riser, 23 AWG Solid Bare Copper, PO Insulation, Patented X-Spline and EquiBlock Technologies, PVC Jacket, Sequential Markings at 2 Feet

Insulation:-

• Material: PO - Polyolefin

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.305 in (7.75 mm)
• Overall Cable Diameter (Nominal): 0.305 in (7.75 mm)
• Separator: Center Member (Patented X-Spline), EquiBlock Barrier Technology

Standards:-

• UL Voltage Rating: 300 V (CMR)
• Operating Temperature Range: -40°C To +75°C

Applications:-

• exposure to oil and gasoline, harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc.

Specifications:-

• Size (AWG): 23
• No. of Pair: 4
• Stranding: Solid
• Category: 6A
• Conductor Material: BC - Bare Copper
• Part Number: IEA001
