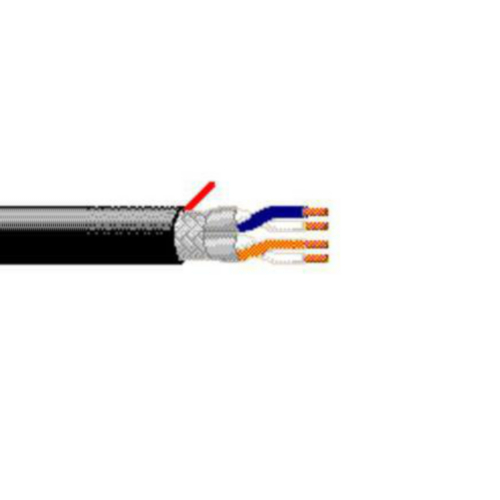

Belden 9688 22 AWG 2 Pair Solid Bare Copper 150 Ohms Multi-Conductor Cable

Description:-

IBM Type 1A, 22 AWG solid BC conductors, non-plenum, flame-retardant foam polyethylene insulation, each pair individually Beldfoil shield (65% coverage), rip cord, PVC jacket.

Insulation:-

• Insulation Material: FRFPE - Flame Retardant Foam Polyethylene
• Insulation Resistance > 16000 Megaohms

Inner Shield:

• Inner Shield Material Trade Name: Beldfoil
• Inner Shield Type: Tape
• Inner Shield Material: Aluminum Foil-Polyester Tape
• Inner Shield % Coverage: 100 %

Outer Shield:-

• Outer Shield Type: Braid
• Outer Shield Material: TC - Tinned Copper
• Outer Shield %Coverage: 65 %

Outer Jacket:-

• Outer Jacket Material: PVC - Polyvinyl Chloride
• Outer Jacket Ripcord: Yes

Overall Nominal Diameter:

• Overall Nominal Diameter: 0.296 x 0.431 in.

Standards:-

• IEEE Specification: IEEE802.5 Token Ring
• Nom. Characteristic Impedance 150 Ohms
• Operating Temperature Range: -40°C To +75°C

Applications:-

• Token Ring 4 and 16 Mbps, FDDI over Copper, and video

Specifications:-

• Size (AWG): 22
• No. of Pair: 2
• Stranding: Solid
• Conductor Material: BC - Bare Copper
• Part Number: 9688
