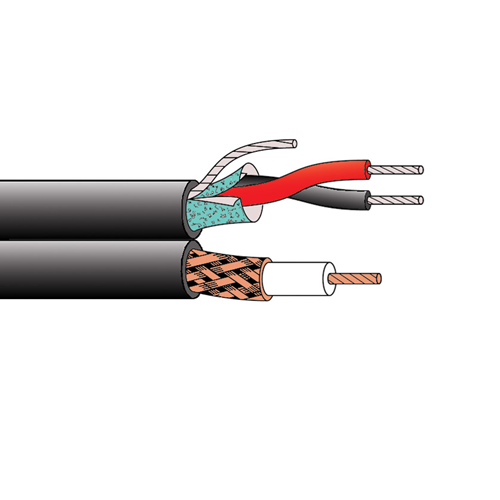

Belden 9265 22 AWG 1 Pair 1 Conductor RG-59 Composite Coax Cable

Description:

Composite, RG-59 22 AWG BC Coax, stranded (7x30), BC braid 95% coverage, 1 PR 22 AWG TC, stranded (7x30), w/drain wire, PVC jacket.

Insulation:

Element: Coax(es)
• Material: PE - Polyethylene (Foam)
• Nominal Diameter: 0.146 in

Element: Pair(s)
• Material: PVC - Polyvinyl Chloride
• Nominal Diameter: 0.054 in

Inner Shield:

• Element: Coax(es)
• Shield Type: Braid
• Material: Bare Copper (BC)
• Coverage: 95%
• Drainwire: 22 AWG 7x30 TC - Tinned Copper
• Drainwire Diameter: 0.03 in

• Element: Pair(s)
• Shield Type: Tape
• Material: Bi-Laminate(Alum+Poly)
• Material Trade Name: Beldfoil (Z-Fold)
• Coverage: 100%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.47 in

Standards:

• Voltage Rating: 30 V RMS
• Operating Temperature: -40°C To +60°C
• Nom. Characteristic Impedance: 75 Ohm

Specifications:

• Element: Coax(es)
• Size (AWG): 22
• No. of Conductor: 1
• Nom. Diameter: 0.03 in
• Conductor Material: BC - Bare Copper

• Element: Pair(s)
• Size (AWG): 22
• No. of Pair: 1
• Stranding: 7x30
• Nom. Diameter: 0.03 in
• Conductor Material: TC - Tinned Copper
• Part Number: 9265
