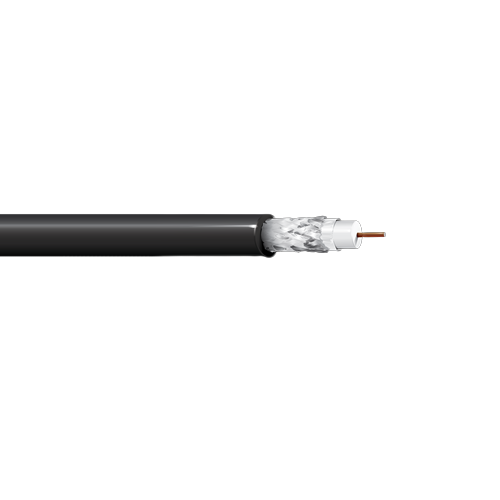

Belden 9209 23 AWG 1 Conductor Solid Bare Copper 2300V Precision Video Coax Cable

Description:-

23 AWG solid 0.022" bare copper conductor, polyethylene insulation, Duofoil + tinned copper braid shield (95% coverage), polyethylene jacket.

Insulation:-

• Material: PE - Polyethylene
• Nominal Diameter: 0.146 in

Outer Shield:-

• Layer: 1
• Shield Type: Tape
• Material: Tri-Laminate (Alum+Poly+Alum)
• Material Trade Name: Duofoil
• Coverage: 100%

• Layer: 2
• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 95%

Outer Jacket:-

• Material: PE - Polyethylene
• Nom. Diameter: 0.22 in

Standards:-

• UL Voltage Rating: 2300 V RMS
• Nominal Characteristic Impedance: 75 Ohm
• Operating Temperature Range: -55°C To +80°C

Specifications:-

• Size (AWG): 23
• No. of Conductor: 1
• Stranding: Solid
• Nominal Diameter: 0.022 in
• Conductor Material: BC - Bare Copper
• Part Number: 9209
