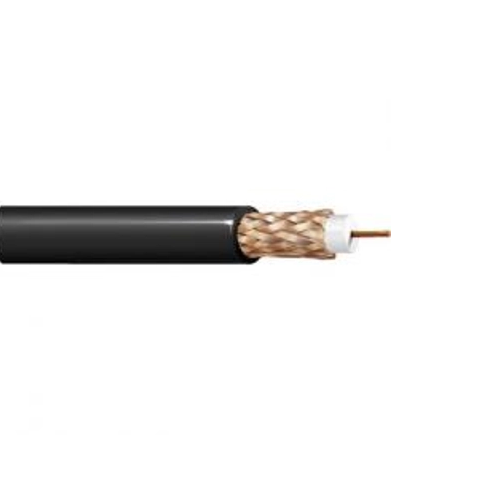

Belden 9204 23 AWG 1 Conductor Solid Bare Copper Covered Steel 1700V Coax Cable

Description:-

23 awg solid 0.023" bare copper-covered steel conductor, polyethylene insulation, bare copper braid shield (95% coverage), non-contaminating PVC jacket.

Insulation:-

• Material: PE - Polyethylene
• Nominal Diameter: 0.145 in

Outer Shield:-

• Shield Type: Braid
• Material: Bare Copper (BC)
• Coverage: 95%

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride (Non-Contaminating)
• Nom. Diameter: 0.242 in

Standards:-

• UL Voltage Rating: 1700 V RMS
• Nominal Characteristic Impedance: 75 Ohm
• Operating Temperature Range: -40°C To +85°C

Specifications:-

• Size (AWG): 23
• No. of Conductor: 1
• Stranding: Solid
• Conductor Material: BCCS - Bare Copper Covered Steel
• Nominal Diameter: 0.023 in
• Part Number: 9204
