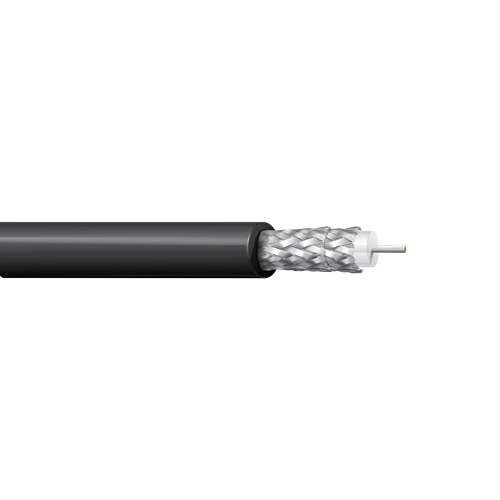

Belden 83242 19 AWG 1 Conductor Solid RG-142 Mil-Spec 50 Ohm Coax Cable

Description:

Mil-Spec Coax, 50 Ohm, RG-142, 19 AWG Solid Silvered Copper Covered Steel Conductor, PTFE Insulation, Double 95% Silvered Copper Braid Shield, FEP Jacket, CMP, Commercial, non-QPL.

Insulation:

• Material: PTFE - Polytetrafluoroethylene
• Nom. Insulation Diameter: 0.116 in (2.95 mm)

Outer Shield:

• Layer 1: Outer Shield Type Braid, Silvered Copper (SC) Material, Coverage 95%

• Layer 2: Outer Shield Type Braid, Silvered Copper (SC) Material, Coverage 95%

Outer Jacket:

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Diameter: 0.195 in (4.95 mm)
• Overall Cable Diameter (Nominal): 0.195 in (4.95 mm)

Applications:

• Aerospace wireless communication
