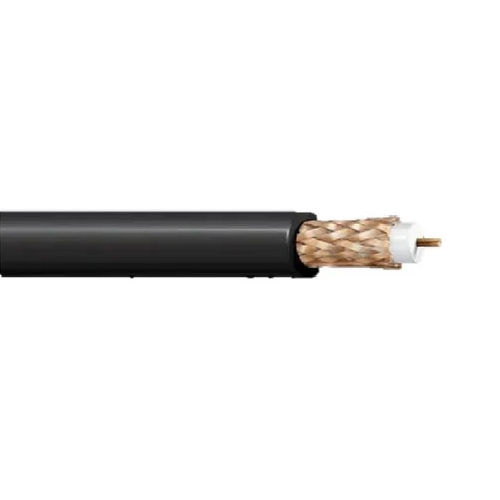

Belden 82241 23 AWG 1 Conductor Solid Bare Copper Covered Steel 300V Analog Video Cable

Description:

23 AWG Solid 0.023" bare copper-covered steel conductor, plenum, FEP insulation, bare copper braid shield (95% coverage), Flamarrest jacket.

Insulation:

• Material: FEP - Fluorinated Ethylene Propylene
• Nominal Diameter: 0.134 in

Outer Shield:

• Shield Type: Braid
• Material: Bare Copper (BC)
• Coverage: 95%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Material Trade Name: Flamarrest
• Nom. Diameter: 0.19 in

Standards:

• Voltage Rating: 300 V RMS
• Operating Temperature: -20°C To +75°C
• Nom. Characteristic Impedance: 75 Ohm

Specifications:

• Size (AWG): 23
• No. of Conductor: 1
• Stranding: Solid
• Nom. Diameter: 0.023 in
• Conductor Material: BCCS - Bare Copper Covered Steel
• Part Number: 82241
