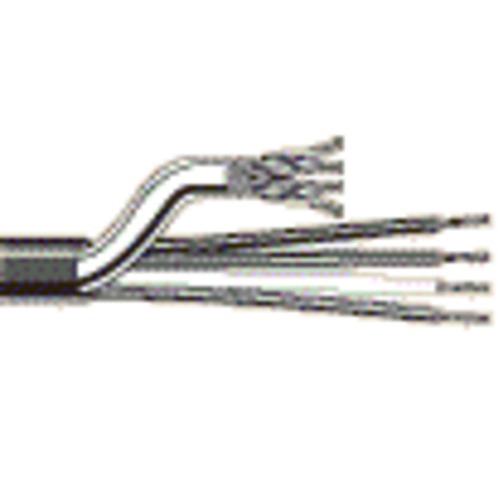

Belden 7951A 24 AWG 4 Pair 18 AWG 19x30 Stranding Security and Control Cable

Description:-

Composite - (1)Cat 5 4-pair, 24 AWG unshielded plus (4) 18 AWG stranded (19x30) bare copper conductors, polyolefin Insulation on the pairs; PVC insulation on the conductors, overall F-R PVC jacket, sequentially marked, CMR rated.

Temperature:

• UL Temperature: 60°C
• Operating: -25°C to +75°C
• Installation: -25°C to +75°C

Applications:-

• Data, control

Specifications:-

• Size (AWG): 24
• No. of Pair: 4

• Size (AWG): 18
• Stranding: 19x30
• Conductor Material: BC - Bare Copper
• Part Number: 7951A
