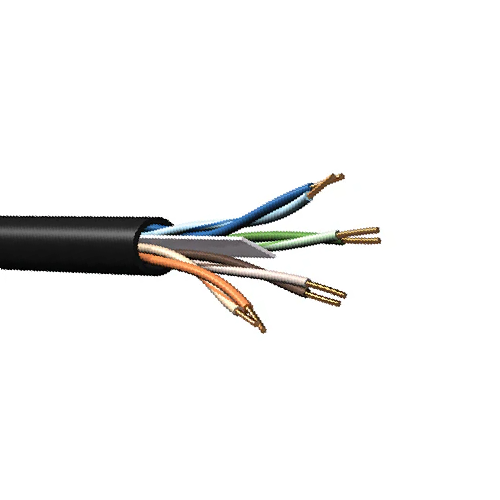

Belden 7940T 23 AWG 4 Pair Solid Bare Copper Cat 6 MarineTuff Cable

Description:

Industrial Ethernet Cat 6, 4 Bonded-Pair 23 AWG (Solid) Bare Copper, PO Insulation, LSZH Jacket, Flame Barrier, LSZH Jacket, LSZH Outer Jacket, CMG-ST1, FT4, NFPA 130.

Insulation:

• Material: PO - Polyolefin
• Nom. Thickness: 0.045 in (1.1 mm)

Inner Jacket:

• Material: LSZH - Low Smoke Zero Halogen (Flame Retardant)
• Nom. Diameter: 0.274 in (6.96 mm)

Outer Jacket:

• Material: LSZH - Low Smoke Zero Halogen (Flame Retardant)
• Material Trade Name: Haloarrest
• Nom. Diameter: 0.328 in (8.33 mm)
• Overall Cable Diameter (Nominal): 0.328 in (8.33 mm)
• Aramid Tape

Standards:

• Voltage Rating: 300 V RMS
• Operating Temperature: -30°C To +60°C

Applications:

• shipboard, transportation, harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc.

Specifications:

• Size (AWG): 23
• No. of Pairs: 4
• Stranding: Solid
• Conductor Material: BC - Bare Copper
• Part Number: 7940T
