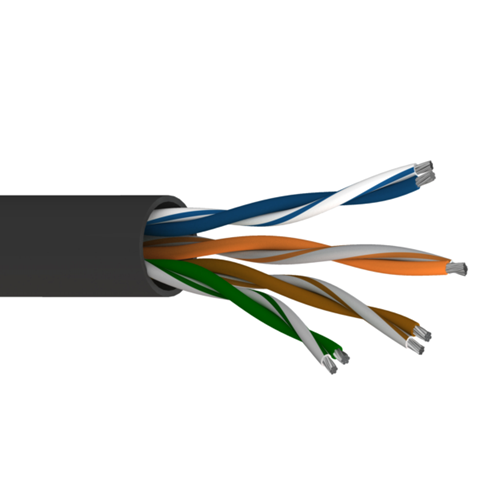

Belden 7905A 24 AWG 4 Pair 7x32 Stranding Tinned Copper Cat 5e CMR DataTuff Cable

Description:

Industrial Ethernet Cat 5e, 4 Bonded Pair 24 AWG (7x32) Tinned Copper, PO Insulation, TPE Outer Jacket, Flexible CMR.

Insulation:

• Material: PO - Polyolefin
• Nominal Diameter: 0.040 in
• Nominal Wall Thickness: 0.008 in

Outer Jacket:

• Material: TPE - Thermoplastic Elastomer
• Nominal Diameter: 0.242 in

Standards:

• Voltage Rating: 300 V RMS
• Operating Temperature: -40°C To +75°C

Applications:

• harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc

Specifications:

• Size (AWG): 24
• No. of Pairs: 4
• Stranding: 7x32
• Conductor Material: TC - Tinned Copper
• Part Number: 7905A
