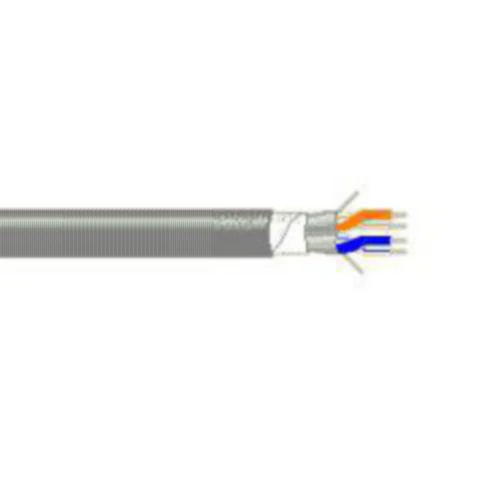

Belden 7838A 22 AWG 2 Pair Solid Tinned Copper 300V T1/DS1 Central Office Cable

Description:-

2 Twisted Pair 22 AWG solid tinned copper conductors, Datalene insulation, individually shielded with 100% Beldfoil shield, 24 AWG solid tinned copper drain wire each pair, PVC jacket, CM rated.

Insulation:-

• Material: PE - Polyethylene (Foam)
• Nom. Insulation Diameter:  0.072 in (1.8 mm)

Inner Shield:-

• Layer: 1
• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.202 x 0.360 in

Standards:-

• UL Voltage Rating: 300 V RMS
• Operating Temperature Range: -20°C To +75°C

Applications:-

• T1, DS1, Data

Specifications:-

• Size (AWG): 22
• No. of Pair: 2
• Stranding: Solid
• Nominal Diameter: 0.051 in
• Conductor Material: TC - Tinned Copper
• Part Number: 7838A
