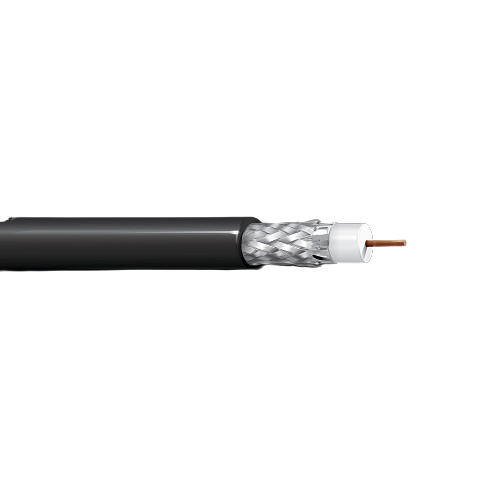

Belden 7731SB 14 AWG 1 Conductor Solid Bare Copper 300V SDI Coax Cable

Description:-

75 Ohm SDI Coax, RG-11, 14 AWG Solid Bare Copper Conductor, PE Insulation, Foil + 95% Tinned Copper Braid Shield, LSZH Jacket, CMG-LS, Shipboard ABS Type Approved.

Insulation:-

• Material: PE - Polyethylene (Foam)
• Nom. Insulation Diameter: 0.280 in (7.11 mm)

Outer Shield:-

• Layer: 1
• Shield Type: Tape
• Material: Tri-Laminate (Alum+Poly+Alum)
• Coverage: 100%
• Material Trade Name: Duofoil

• Layer: 2
• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 95%

Outer Jacket:-

• Material: LSZH - Low Smoke Zero Halogen (Flame Retardant)
• Nom. Diameter: 0.400 in (10.2 mm)
• Overall Nominal Diameter: 0.400 in (10.2 mm)

Standards:-

• UL Voltage Rating: 300 V (CMG)
• Nom. Characteristic Impedance: 75 Ohm
• Operating Temperature Range: -30°C to +75°C

Applications:-

• Digital Video, HD-SDI 1080p, ABS approved for marine shipboard and offshore use

Specifications:-

• Size (AWG): 14
• No. of Conductor: 1
• Stranding: Solid
• Nom. Diameter: 0.064 in
• RG Type: 11
• Conductor Material: BC - Bare Copper
• Part Number: 7731SB
