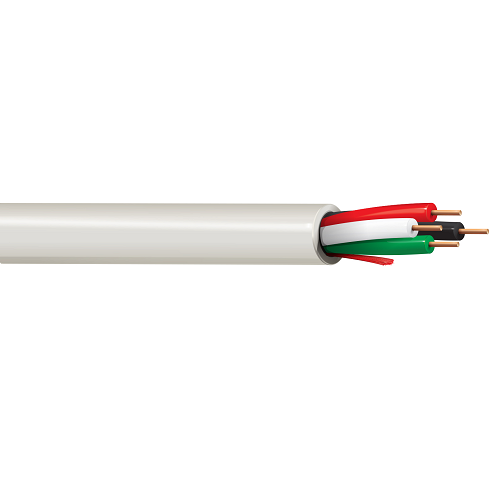

Belden 5582UG 22 AWG 4 Conductor Solid Bare Copper 300V Security and Sound Cable

Description:-

Security and Sound Cable, Rated-CM, 4-22 AWG solid bare copper conductors with polyolefin insulation, PVC jacket

Insulation:-

• Material: PP - Polypropylene
• Nominal Wall Thickness: 0.006 in

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.122 in
• Nominal Wall Thickness: 0.015 in

Standards:-

• UL Voltage Rating: 300 V RMS
• Operating Temperature Range: -20°C To +75°C

Applications:-

• Security System, Alarm, Intercom/PA, Single Line Telephone, Station Wire

Specifications:-

• Size (AWG): 22
• No. of Conductor: 4
• Stranding: Solid
• Conductor Material: BC - Bare Copper
• Part Number: 5582UG
