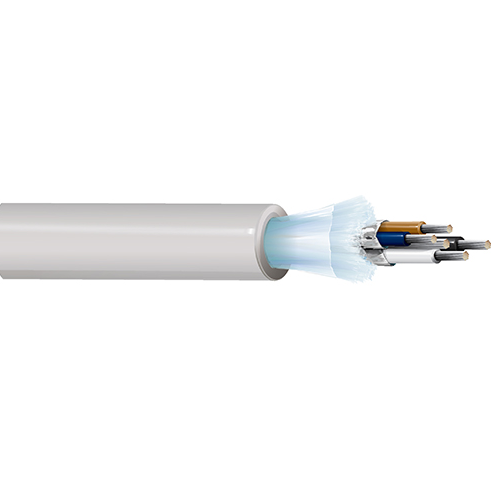

Belden 3087A 22 AWG 2 Pair 19x34 Stranding Tinned Copper 300V DeviceBus Cable

Description:

DeviceBus for Honeywell SDS, 2 Pair 22 AWG (19x34) Tinned Copper, PVC+Foam PE Insulation, Individual Beldfoil Shield, PVC Outer Jacket, CL2

Insulation:

Element: Power Pair(s)
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.010 in (0.25 mm)
• Nom. Insulation Diameter: 0.050 in (1.3 mm)

Element: Data Pair(s)
• Material: PE - Polyethylene (Foam)
• Nom. Thickness: 0.034 in (0.86 mm)
• Nom. Insulation Diameter: 0.098 in (2.5 mm)

Inner Shield:

Element: Power Pair(s)
• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%

Element: Data Pair(s)
• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 22 AWG (19x34) TC - Tinned Copper

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.035 in (0.89 mm)
• Nom. Diameter: 0.290 in (7.37 mm)
• Overall Cable Diameter (Nominal): 0.290 in (7.37 mm)

Standards:

• Operating Temperature: -20°C to +80°C
• Nom. Characteristic Impedance: 120 Ohms
• Voltage Rating: 300 V (CL2), 300 V (AWM 2464), 300 V (AWM I/II A)

Applications:

• harsh environment, IIoT, factory or process automation, video, audio, data communication, etc
