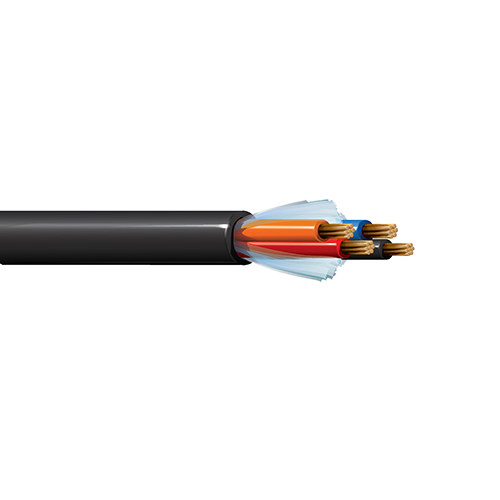

Belden 28600A 18 AWG 6 Conductor 7x26 Stranding Bare Copper 600V Type TC Cable

Description:-

UL Type TC (1277) PVC-Nylon/PVC, 6 Conductor 18 AWG (7x26) Bare Copper, PVC-NYL Insulation E2 Color Code, Black PVC Outer Jacket, 600V TC-ER 150V NPLF 90C Dry/Wet SUN RES DIR BUR

Insulation:-

• Material: PVC/Nylon - Polyvinyl Chloride + Nylon
• Nom. Thickness: 0.021 in (0.53 mm)
• Nom. Insulation Diameter: 0.088 in mm

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.047 in (1.2 mm)
• Nom. Diameter: 0.34 in (8.6 mm)
• Overall Cable Diameter (Nominal): 0.34 in (8.6 mm)

Standards:-

• UL Voltage Rating: 600 V (TC-ER), 150 V (NPLF)
• Operating Temperature Range: -30°C To +90°C

Applications:-

• Power and Control Applications up to 600V; Class 1 Division 2 Hazardous Locations; Recommended Cable Gland Belden BTC075A0551RA

Specifications:-

• Size (AWG): 18
• No. of Conductor: 6
• Stranding: 7x26
• Conductor Material: BC - Bare Copper
• Part Number: 28600A
