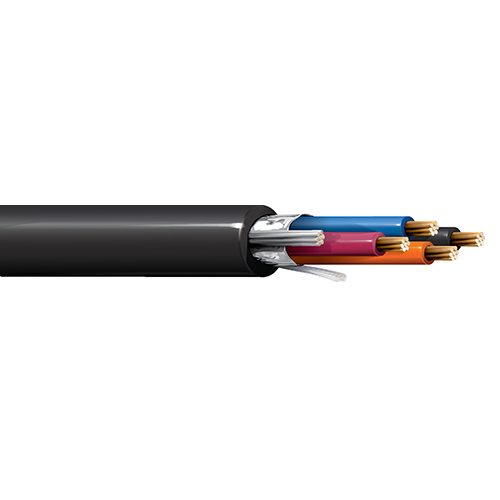

Belden 28111AS 12 AWG 4 Conductor 7x20 Stranding Bare Copper 600V Type TC Cable

Description:-

UL Type TC (1277) PVC-Nylon/PVC, 4 Conductor 12AWG (7x20) Bare Copper, PVC-NYL Insulation E2 Color Code, Overall Beldfoil Shield, Black PVC Outer Jacket, 600V TC-ER 150V NPLF 90C Dry/Wet SUN RES DIR BUR

Insulation:-

• Material: PVC/Nylon - Polyvinyl Chloride + Nylon
• Nom. Thickness: 0.019 in (0.48 mm)
• Nom. Insulation Diameter: 0.131 in (3.33 mm)

Outer Shield:-

• Layer: 1
• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 12 AWG (7x20) TC - Tinned Copper

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.047 in (1.2 mm)
• Nom. Diameter: 0.453 in
• Overall Cable Diameter (Nominal): 0.453 in

Standards:-

• UL Voltage Rating: 600 V (TC-ER), 150 V (NPLF)
• Operating Temperature Range: Wet/Dry: -30°C to 90°C

Applications:-

• Power and Control Applications up to 600V

Specifications:-

• Size (AWG): 12
• No. of Conductor: 4
• Stranding: 7x20
• Conductor Material: BC - Bare Copper
• Part Number: 28111AS
