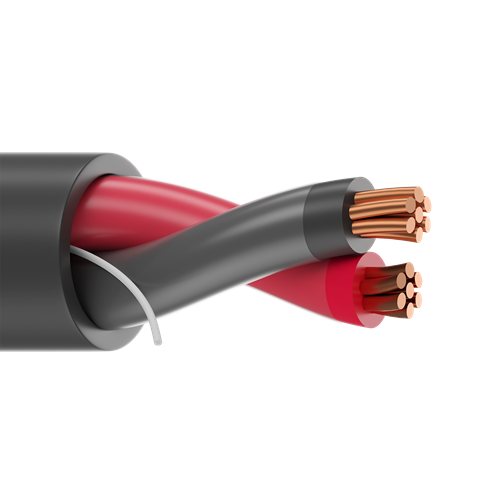

Belden 27641A 12 AWG 2 Conductor 7x20 Stranding Bare Copper 600V Type TC Cable

Description:

UL Type TC (1277) PVC-Nylon/PVC, 2 Conductor 12 AWG (7x20) Bare Copper, PVC-NYL Insulation E2 Color Code, Black PVC Outer Jacket, 600V TC 150V NPLF 90C Wet/Dry SUN RES DIR BUR.

Insulation:

• Material: PVC/Nylon - Polyvinyl Chloride + Nylon
• Nom. Thickness: 0.019 in (0.48 mm)
• Nom. Insulation Diameter: 0.131 in (3.33 mm)

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.047 in (1.2 mm)
• Nom. Diameter: 0.354 in
• Overall Cable Diameter (Nominal): 0.354 in

Standards:

• Voltage Rating: 600 V (TC), 150 V (NPLF)
• UL Voltage Rating: 90°C Dry, 90°C Wet
• Operating Temperature: Wet/Dry: -30°C to 90°C

Applications:

• Power and Control Applications up to 600V; Class 1 Division 2 Hazardous Locations; Recommended Cable Gland Belden BTC075A0551RA

Specifications:

• Size (AWG): 12
• No. of Conductor: 2
• Stranding: 7x20
• Conductor Material: BC - Bare Copper
• Part Number: 27641A
