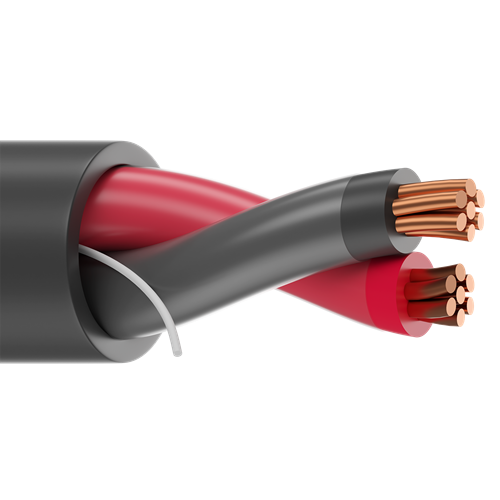

Belden 27138A 10 AWG 2 Conductor 7x18 Stranding Bare Copper 600V Multi-Conductor Cable

Description:

UL Type TC (1277) PVC-Nylon/PVC, 2 Conductor 10 AWG (7x18) Bare Copper, PVC-NYL Insulation E2 Color Code, Black PVC Outer Jacket, 600V TC 90C Wet/Dry SUN RES DIR BUR

Insulation:

• Element: Conductor(s)
• Material: PVC/Nylon - Polyvinyl Chloride + Nylon
• Nom. Thickness: 0.028 in (0.71 mm)
• Nom. Insulation Diameter: 0.166 in (4.22 mm)

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.047 in (1.2 mm)
• Nom. Diameter: 0.26 x 0.426 in
• Overall Cable Diameter (Nominal): 0.26 x 0.426 in

Standards:

• Voltage Rating: 600 V (TC)
• UL Temperature: 90°C Dry, 90°C Wet
• Operating Temperature: Wet/Dry: -30°C to 90°C

Applications:

• Power and Control Applications up to 600V; Class 1 Division 2 Hazardous Locations.

Specifications:

• Size (AWG): 10
• No. of Conductor: 2
• Stranding: 7x18
• Conductor Material: BC - Bare Copper
• Part Number: 27138A
