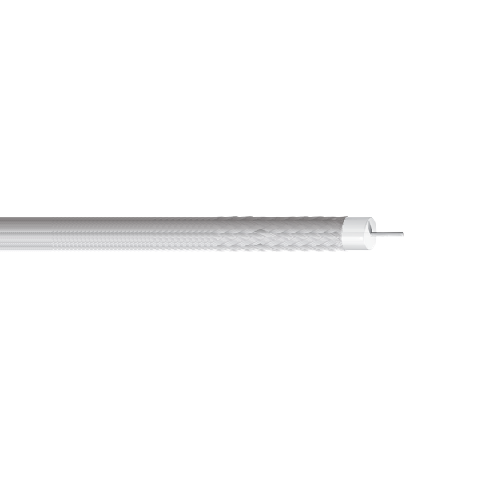

Belden 1675A 14 AWG 1 Conductor Solid Silvered Copper Covered Steel 50 Ohm Conformable Coax Cable

Description:-

Conformable Coax, 50 Ohm, RG-401, 14 AWG Solid Silvered Copper Covered Steel Conductor, PTFE Insulation, Copper Tape + 100% Tin-Filled Composite Braid Shield, Unjacketed.

Insulation:-

• Material: PTFE - Polytetrafluoroethylene
• Nom. Insulation Diameter: 0.21 in (5.3 mm)

Outer Shield:-

• Layer: 1
• Shield Type: Tape
• Material: Bare Copper (BC)
• Coverage: 100%

• Layer: 2
• Shield Type: Braid
• Material: Tinned Copper (TC + Tin Filled)
• Coverage: 100%

Outer Jacket:-

• Overall Cable Diameter (Nominal): 0.246 in (6.25 mm)

Standards:-

• Nominal Characteristic Impedance: 50 Ohm
• Operating Temperature Range: -70°C To +200°C

Specifications:-

• Size (AWG): 14
• No. of Conductor: 1
• Stranding: Solid
• Nominal Diameter: 0.065 in
• Conductor Material: SCCS - Silvered Copper Covered Steel
• Part Number: 1675A
