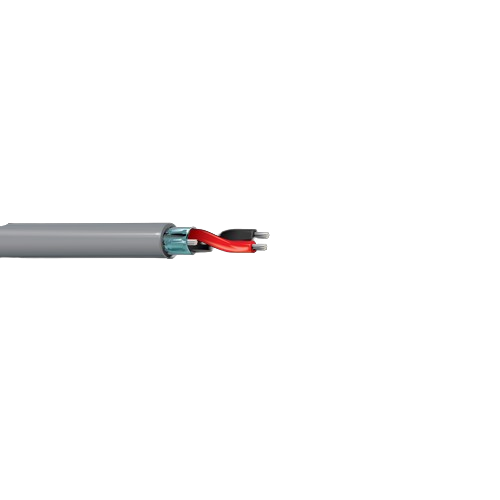

Belden 1175A 22 AWG 1 Pair Solid Tinned Copper 300V T1/DS1 Central Office Cable

Description:-

22 AWG solid tinned copper conductors, twisted pairs, polyethylene insulation, overall Beldfoil shield (100% coverage), 24 AWG solid tinned copper drain wire, PVC jacket.

Insulation:-

• Material: PE - Polyethylene
• Nom. Insulation Diameter: 0.073 in (1.9 mm)

Outer Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 24 AWG (Solid) TC - Tinned Copper

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.195 in
• Overall Nominal Diameter: 0.195 in

Standards:-

• UL Voltage Rating: 300 V
• Nom. Characteristic Impedance: 100 Ohms
• Operating Temperature Range: -20°C to +75°C

Applications:-

• Bits Timing Cable, DS1, T1, Central Office, Cross-Connect, Interconnect

Specifications:-

• Size (AWG): 22
• No. of Pair: 1
• Stranding: Solid
• Conductor Material: TC - Tinned Copper
• Part Number: 1175A
