9204540000 - VDE Cable Stripping Tool for 0.25-1.5mm² Conductors
9204540000 - VDE Cable Stripping Tool for 0.25-1.5mm² Conductors
SKU: SKU: 9204540000 Download PDF
- 9204540000 - VDE Cable Stripping Tool for 0.25-1.5mm² Conductors
- 9204540000 - VDE Cable Stripping Tool for 0.25-1.5mm² Conductors
Couldn't load pickup availability
Description:

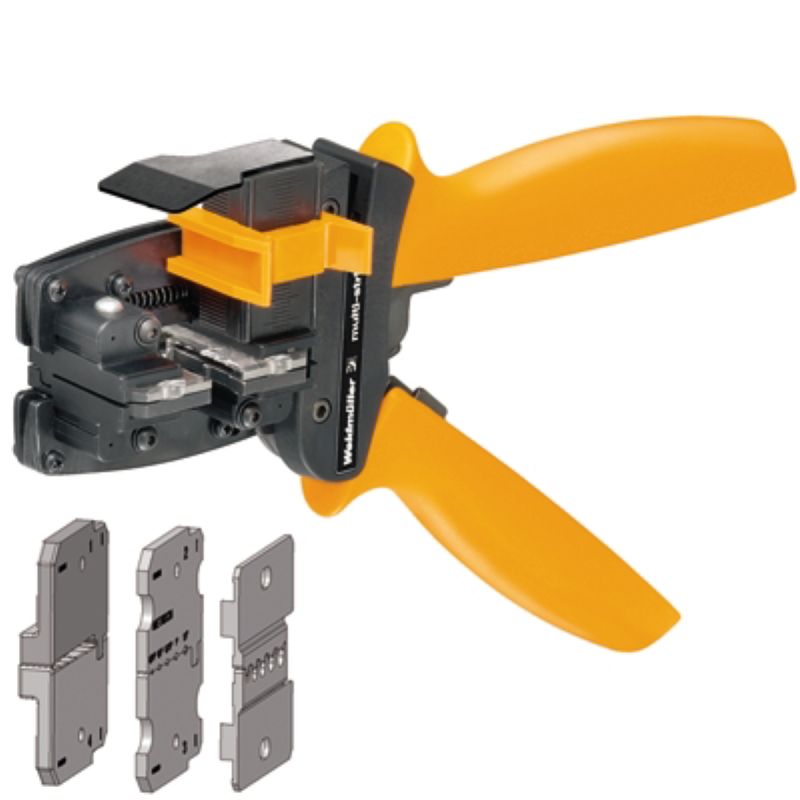

The MULTI-STRIPAX 025-15S is an expertly crafted tool for stripping and cutting VDE cables with PVC insulation, designed to work with wire sizes ranging from 025 mm² to 15 mm² It effectively supports both flexible and solid conductors, allowing for precise adjustments in cutting and stripping lengths This versatile tool can manage various conductor cross-sections, making it an essential addition to your toolkit for electrical tasks.
Features and Benefits:
•Tool for stripping and cutting VDE cables.
•Adaptable for both flexible and solid conductors with PVC insulation.
Specifications:
| Depth | 40 mm |
| Height | 85 mm |
| Width | 250 mm |
| Net weight | 556 g |
| Conductor cross-section (cutting capacity) | 6 mm² |
| Conductor cross-section, max | 1.5 mm² |
| Conductor cross-section, min | 0.25 mm² |
| Max. cutting capacity, fine-strand | 6 mm² |
| Max. cutting capacity, ribbon | 10.2 mm x 4 mm |
| Max. cutting capacity, solid | 2.5 mm² |
| Stripping length, min | 2 mm |
| Stripping range AWG, max | 14 AWG |
| Stripping range AWG, min | 23 AWG |
| RoHS Compliance Status | Not affected |
| REACH SVHC | Lead 7439-92-1 |
