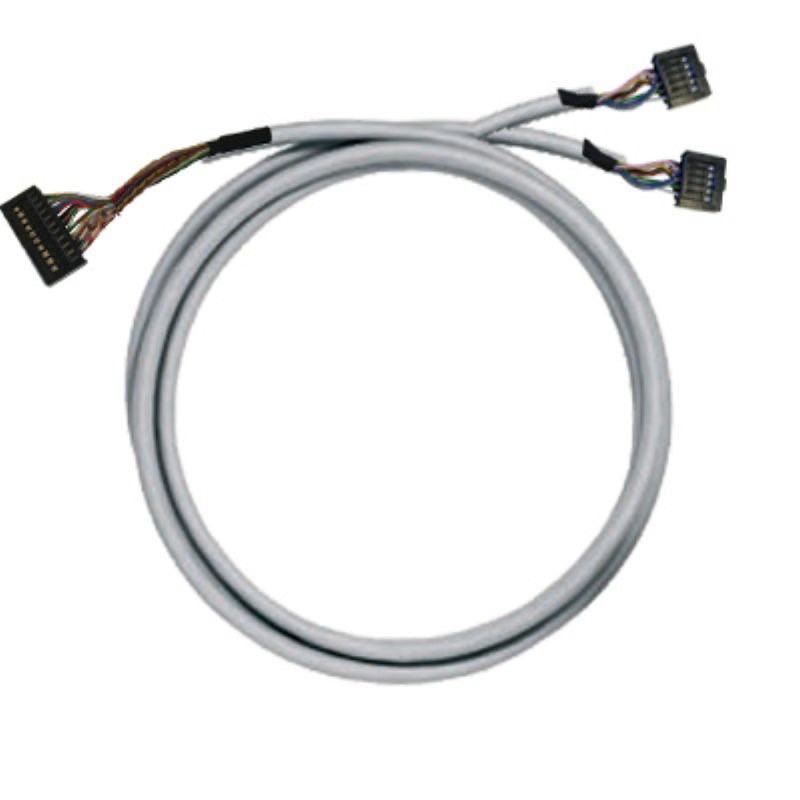

7789810025 - 2.5m PVC Digital Signal Cable with HE10 Connectors

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the 25-meter pre-assembled cable, model PAC-UNIV-HE20-HE1-2M5, perfect for transmitting digital signals seamlessly This cable boasts a wire cross-section of 025 mm² and is crafted from durable PVC material One end is equipped with an HE10 20P connector, while the opposite features two HE10 10P connectors for versatile connectivity With an outer diameter of 86 mm, this cable has a tolerance of ±1 mm.

It meets RoHS standards and complies with various environmental product regulations, ensuring it’s a responsible choice for all your digital signal needs.

Features and Benefits:

•Net weight is 295 g.

•Storage temperature ranges from -10 to 60 °C.

•Operating temperature is between -10 to 50 °C.

•Suitable for digital signals.

•Permissible current strength per path is a maximum of 1 A.

•Rated voltage is ≤ 60 V DC and ≤ 25 V AC.

•High voltage test rating is 1 KV for 1 second.

•Resistance not exceeding 80 mΩ/m.

•Total current maximum is 3 A.

Specifications:
