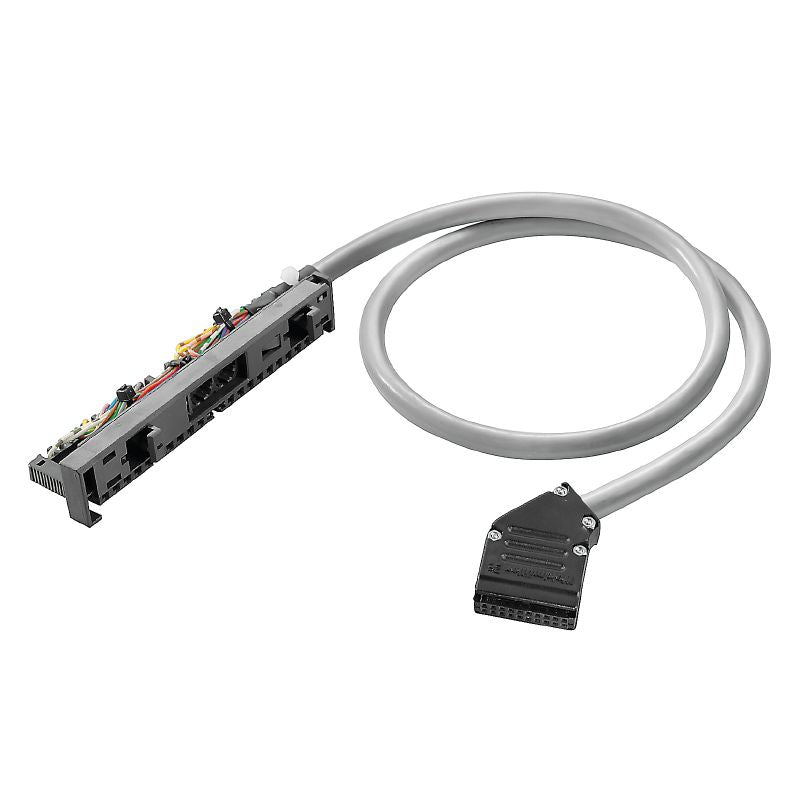

7789801050 - 5m PVC Digital Signal Cable with SIEMENS Connector

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Enhance your connectivity with the pre-assembled PAC-S300-HE20-S-V0-5M cable, expertly crafted from durable PVC for reliable digital signal transmission This cable boasts a wire cross-section of 025 mm², featuring a compatible connector for SIEMENS S7300 on one end and a HE10 flat cable connector on the other With an approximate outer diameter of 86 ± 1 mm, it’s designed for efficiency and ease of use in various applications.

Features and Benefits:

•Compliant with RoHS and REACH regulations.

•Capacitance per wire/shield and between wires is 300 pF/m.

•High voltage test rating of 1 KV for 1 second.

•Maximum permissible current strength of 1 A per path with a total current capacity of 3 A.

•Rated voltage of ≤ 60 Vdc and ≤ 25 Vac.

•Low resistance of ≤ 80 mΩ/m.

•Digital signals.

Specifications:
