7789798020 - 2m PVC PAC Cable for Analogue Signals, 0.25 mm²

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

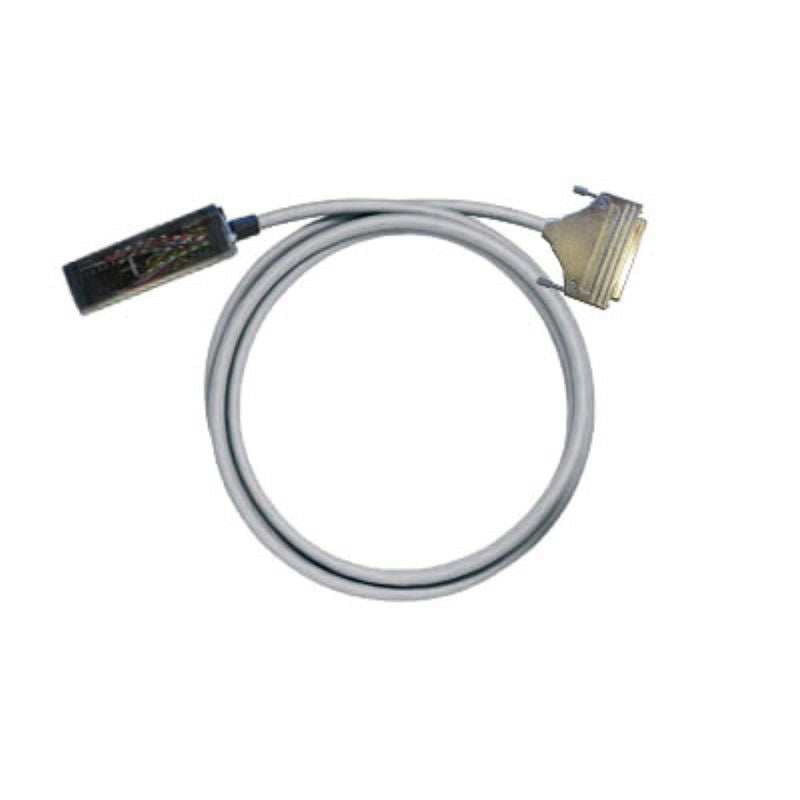

This pre-assembled analogue signal cable features a PAC type design engineered for reliable performance Constructed from durable PVC with a LiYCY configuration, it has a wire cross-section of 025 mm² Measuring 2 meters in length, the cable has an outer diameter of 122 ± 1 mm It is suitable for both direct and alternating current applications, rated up to 60 Vdc and 25 Vac, while supporting a maximum current of 3 A.

Additionally, it comes equipped with a connector on the PLC side, compatible with the GEFANUC IC694TBS032 36P, and a SUB-D FEMALE 37P interface connector for easy integration.

Features and Benefits:

•Compliant with RoHS exemption 6c.

•Operating temperature range of -10 to 50 °C.

•Storage temperature range of -10 to 60 °C.

•Capacity of 300 pF/m for both wire/shield and wire/wires.

•High voltage test of 1 KV for 1 second.

•Maximum permissible current strength of 1 A per path.

•Used for analogue signals.

Specifications:
