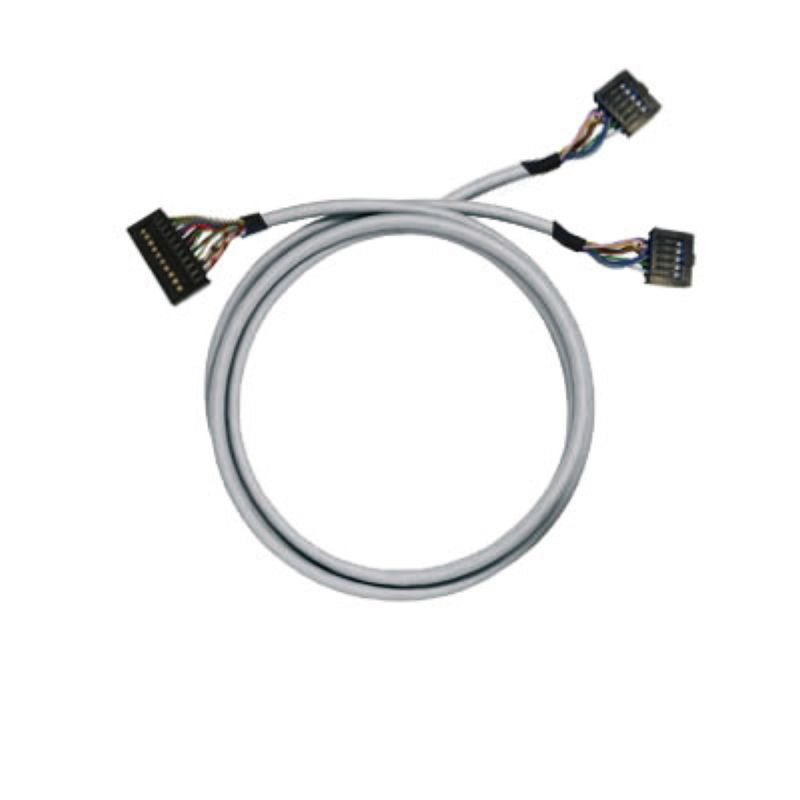

7789791010 - 1m LiYY Cable with HE10 Connectors for Digital Signals

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the Cable LiYY, a reliable solution for digital signal transmission With a wire cross-section of 025 mm², this cable measures 1 meter in length and boasts an outer diameter of 7 ± 1 mm It features a versatile HE10 20P connector on one end and two HE10 10P connectors on the other, making it perfect for various applications Compliant with RoHS standards, this cable operates within a temperature range of -10 to 50 °C, while its storage capabilities extend from -10 to 60 °C.

Ideal for your connectivity needs, this cable combines functionality with quality.

Features and Benefits:

•Compliant with RoHS standards.

•Outer diameter of 7 ± 1 mm.

•Maximum permissible current strength of 1 A.

•Rated voltage of ≤ 60 Vdc and ≤ 25 Vac.

•Resistance of ≤ 80 mΩ/m.

•Transmitting digital signals.

Specifications:
