7789042080 - 8m PVC Cable with ROCKWELL CONTROL LOGIX Connector
7789042080 - 8m PVC Cable with ROCKWELL CONTROL LOGIX Connector
SKU: SKU: 7789042080 Download PDF
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

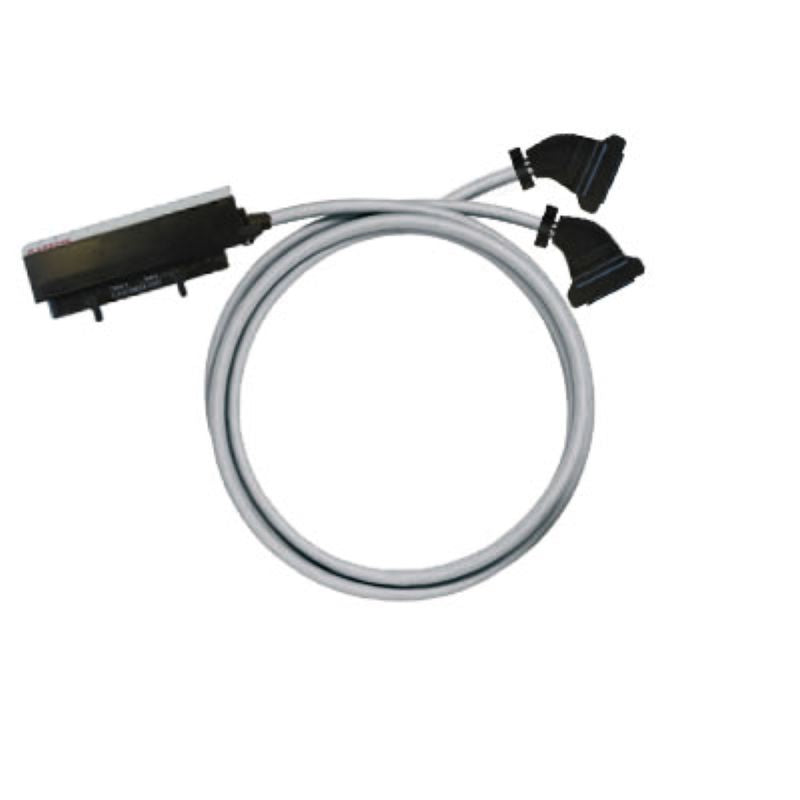

Introducing the PAC-CTLX-HE20-V3-8M pre-assembled cable, expertly crafted for efficient digital signal transmission This 8-meter cable features a cross-section of 025 mm², making it reliable and robust for various applications One end is equipped with a ROCKWELL CONTROL LOGIX connector, while the opposite end has a HE10 flat cable connector Made from high-quality PVC, this cable meets multiple electrical specifications, ensuring versatile performance for your needs.
Features and Benefits:
•Compliant with RoHS exemption.
•Suitable for digital signals.
Specifications:
| Cable length | 8 m |
| Outer diameter | 8.6 ± 1 mm |
| Wire cross-section | 0.25 mm² |
| Operating temperature | -10...50 °C |
| Storage temperature | -10...60 °C |
| Rated voltage | ≤ 60 Vdc ≤ 25 Vac |
| Permissible current strength per path, max | 1 A |
| Total current, max | 3 A |
| Resistance | ≤ 80 mΩ/m |
| High voltage test | 1 KV/1s |
| Capacity wire / shield | 300 pF/m |
| Capacity wire / wires | 300 pF/m |
