2583410000 - TPE Sealing Element for Cable Entry Systems, 20.3mm Light Grey (Pack of 10)

2583410000 - TPE Sealing Element for Cable Entry Systems, 20.3mm Light Grey (Pack of 10)

SKU: 2583410000 Download PDF

Variant:
  • 2583410000 - TPE Sealing Element for Cable Entry Systems, 20.3mm Light Grey (Pack of 10)
Now $25.48
BEFORE   $0.00 Now $25.48
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

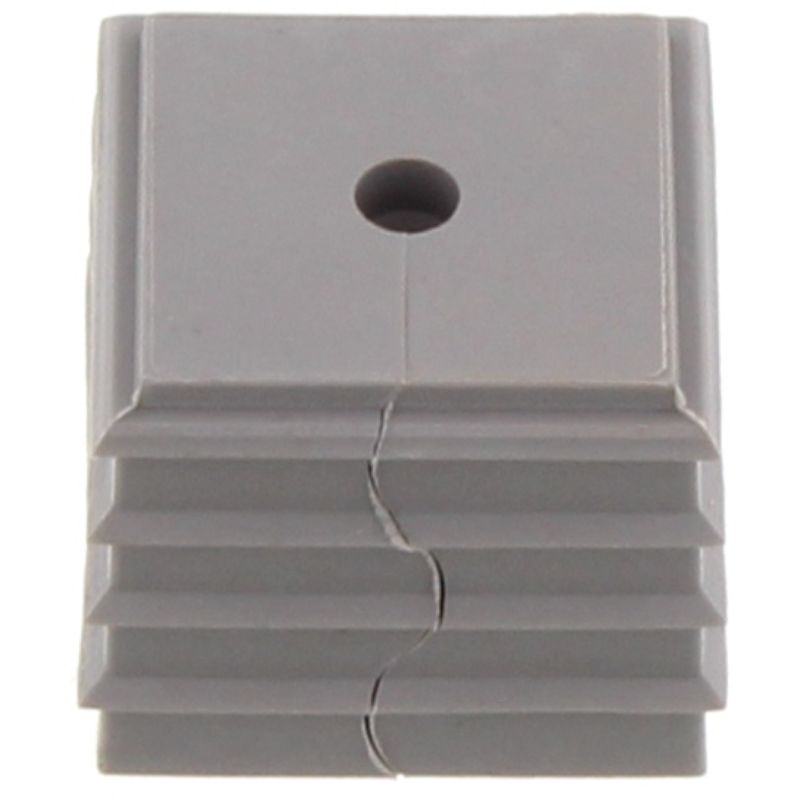

Introducing the CABTITE SE 3 SML GY, a robust sealing element tailored for cable entry systems Crafted from high-quality TPE, it guarantees long-lasting performance This component measures 203 mm in both height and width, with a depth of 177 mm, making it compact and functional Suitable for a wide range of environments, it can withstand temperatures from -40 °C to 90 °C and offers varying degrees of protection, including IP54, IP65, and IP66.

Finished in a subtle light grey color, this sealing element is a reliable choice for your cable management needs.

Features and Benefits:

    •Compliant with RoHS regulations without any exemptions.

    •Operating temperatures range from -40 °C to 90 °C.

    •Sealing element with a small design for effective protection.

    •UL 94 flammability rating of V-0.

Specifications:

 Outer cable diameter, max. 3.25 mm
 Outer cable diameter, min. 2.75 mm
 Depth 17.7 mm
 Height 20.3 mm
 Width 20.3 mm
 GTIN (EAN) 4050118616507
 Basic material TPE
 Halogen No
 Protection degree IP54, IP65, IP66
 Sealing element 1 small sealing element
 Silicone No
 Classifications {'ETIM 6.0': 'EC000879', 'ETIM 7.0': 'EC000879', 'ETIM 8.0': 'EC000879', 'ETIM 9.0': 'EC000879', 'ETIM 10.0': 'EC000879', 'ECLASS 9.0': '27-14-44-21', 'ECLASS 9.1': '27-14-44-21', 'ECLASS 10.0': '27-14-44-21', 'ECLASS 11.0': '27-14-44-21', 'ECLASS 12.0': '27-14-08-07', 'ECLASS 13.0': '27-14-08-07', 'ECLASS 14.0': '27-14-08-07', 'ECLASS 15.0': '27-14-08-07'}
