2503780100 - 1m Halogen-Free M12X Cable with 8 Poles, 10 Gbps

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

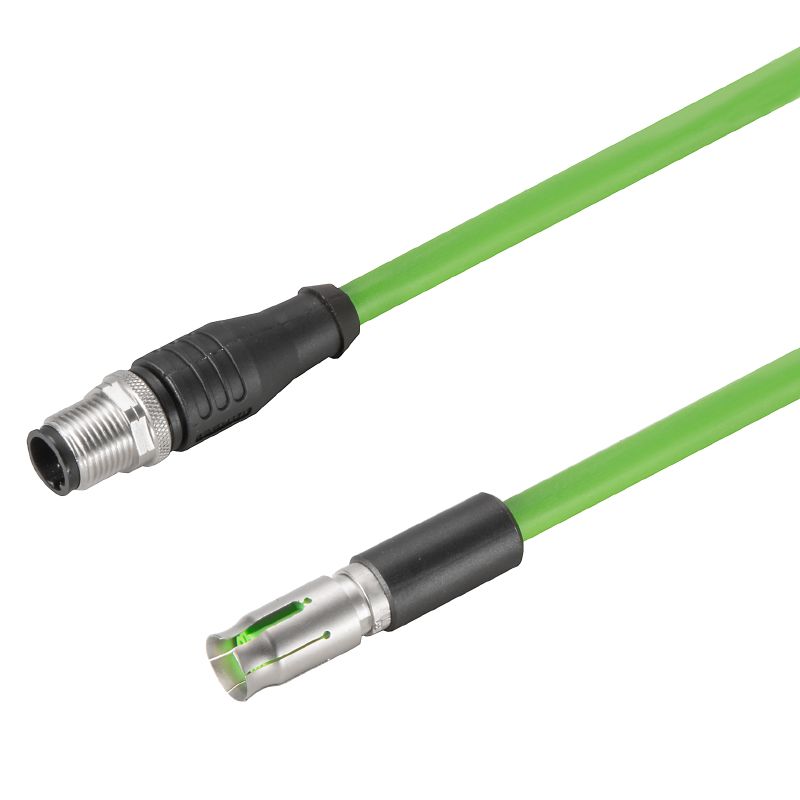

Experience versatility with the HDC XX6A02 FMSM12X-0100 compliant cable, designed for a wide range of applications Measuring 1 meter in length with an outer diameter of 64 mm (±03 mm tolerance), this cable supports high-speed data transmission of up to 10 Gbps It incorporates 8 poles for effective connectivity and features a female connector on one end, paired with a male straight M12X connection on the opposite end, ensuring durability with a minimum of 100 connection cycles.

Crafted with PE insulation, this cable complies with IEC 60754-1 standards, utilizing halogen-free materials for added safety.

Features and Benefits:

•Compliant with RoHS and has RoHS exemption 6c.

•Temperature range of -30 °C to 90 °C.

•Insulation resistance of ≥ 10^8 Ω.

•Nominal current of 0.5 A and nominal voltage of 50 V.

•Colour coding includes white/orange, orange, white/green, green, white/brown, brown, white/blue, blue.

•Sheath material made of PUR.

•Halogen-free according to IEC 60754-1.

Specifications:
