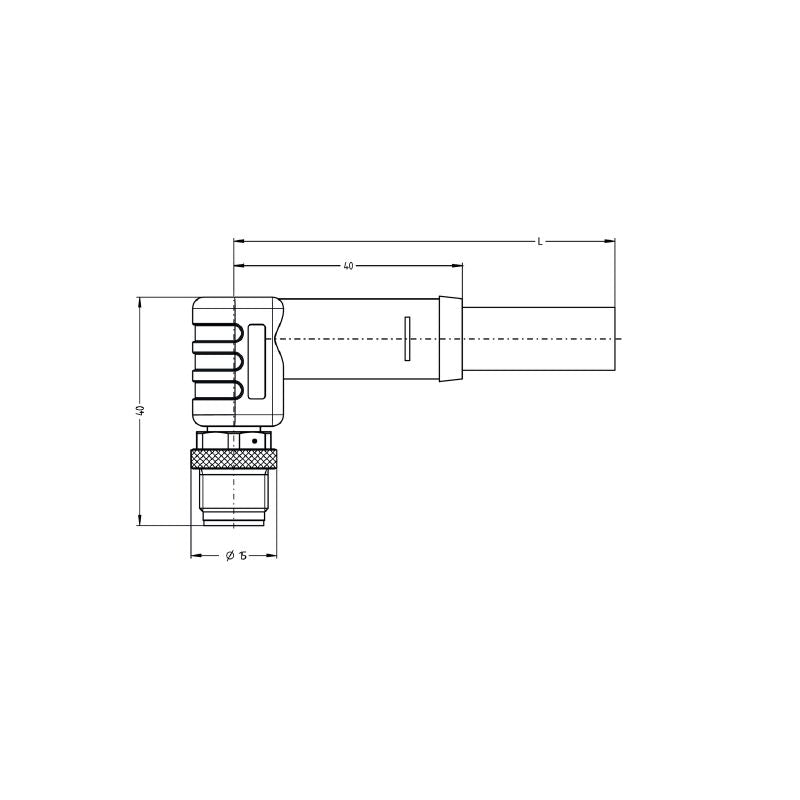

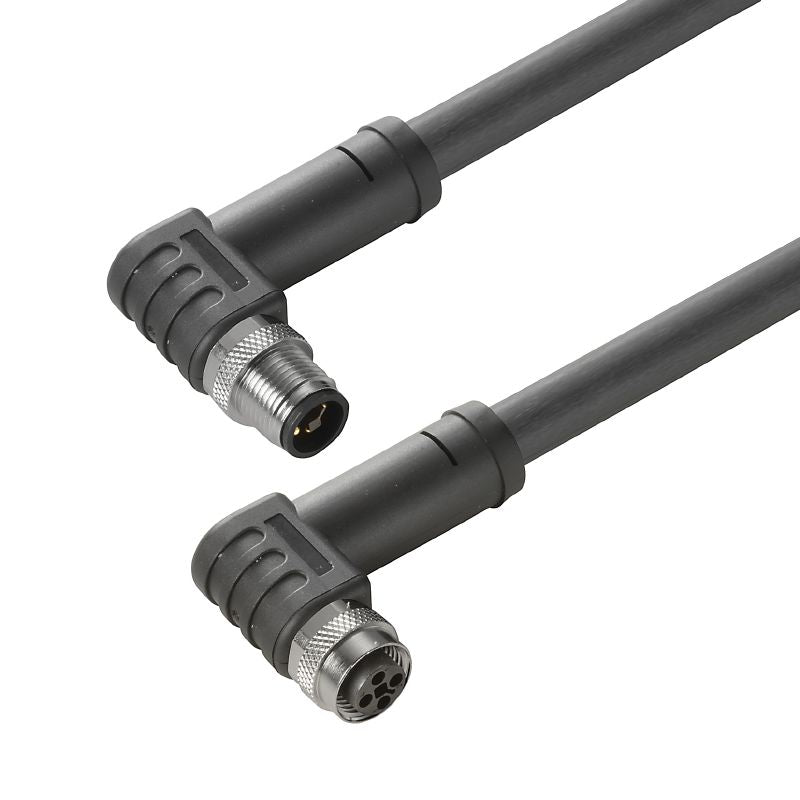

2050920300 - 3m M12 Power Cable, 4-Pole, 90-Degree Connector, PUR Sheath

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

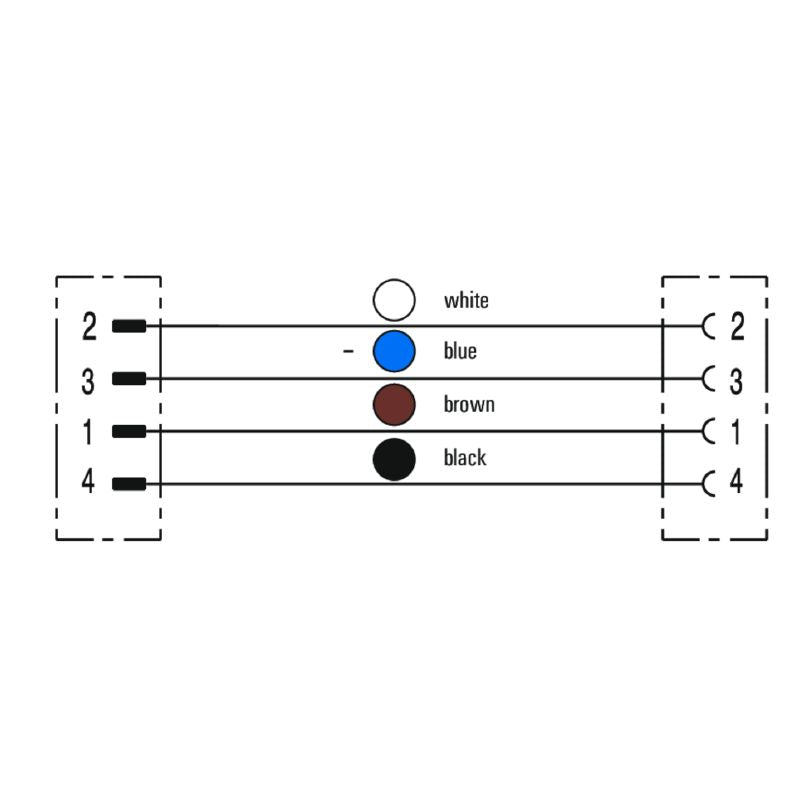

Introducing a versatile M12/M12 power cable, designed for seamless connectivity With a generous length of 3 meters, this cable features a 90-degree pin-to-socket configuration and is unshielded for straightforward applications Crafted from durable PUR material, it is halogen-free for added safety This four-pole cable comes with a variety of color options, including black, blue, white, and brown, making it an excellent choice for diverse wiring needs.

Features and Benefits:

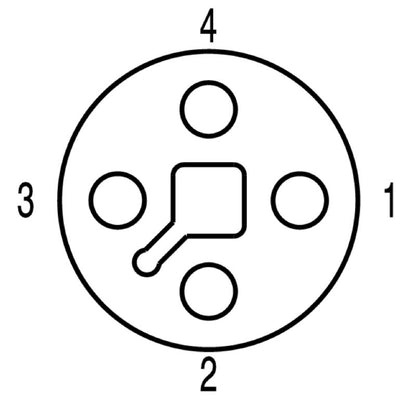

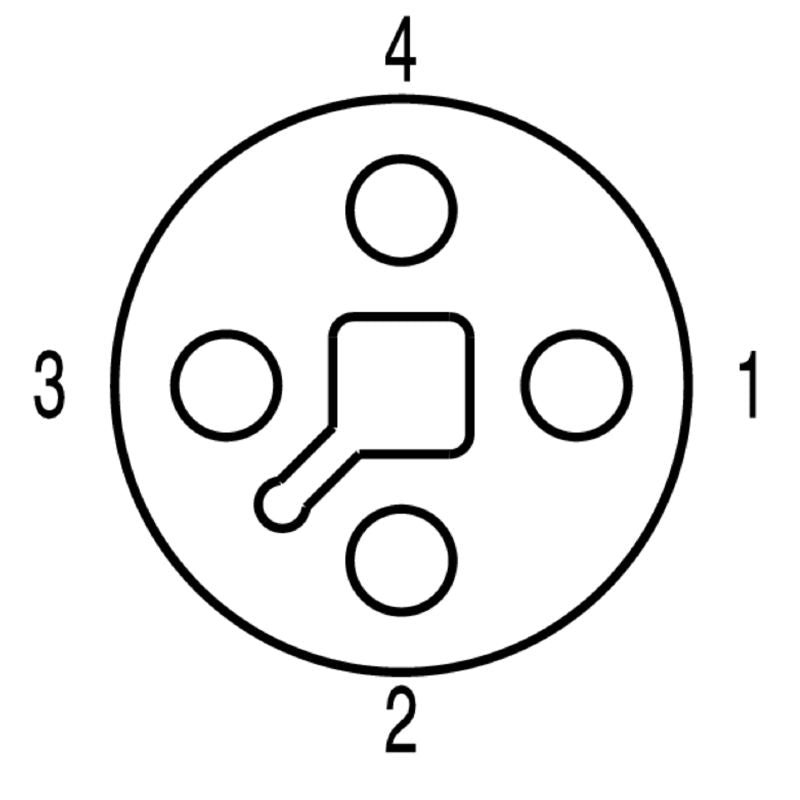

•4 poles.

•Sheath material: PUR.

•Bending radius of 7.5 times the cable diameter when moving.

•Bending radius of 4 times the cable diameter when stationary.

•Resistant to welding sparks: No.

•Temperature range: -40 to 90 °C when moving, -50 to 90 °C when stationary.

•Speed rating: 5 m/s.

•Suitable for cable carriers.

•Nominal current: 12 A.

•Nominal voltage: 63 V.

•IP67 protection degree when assembled.

•Gold-plated contact surface.

•Plugging cycles: ≥ 100.

Specifications:
