2050230500 - 5m Power Cable, 4 Poles, PUR Sheath, No Connector

2050230500 - 5m Power Cable, 4 Poles, PUR Sheath, No Connector

SKU: SKU: 2050230500   Download PDF

Select a Variant:
  • 2050230500 - 5m Power Cable, 4 Poles, PUR Sheath, No Connector
Qty:
Regular price Now $43.90   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $43.90 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing the SAIL-M12G-S-50P power cable, a versatile solution for your connectivity needs Measuring 5 meters in length, this cable is equipped with 4 poles, including 3 conductors plus PE, ensuring a reliable connection The design is unshielded, making it suitable for various applications Constructed from durable PUR material, this cable is free from halogens, contributing to a safer environment.

Please note, it does not feature a connector on one end nor an LED indicator.

Features and Benefits:

    •Compliant with RoHS exemption.

    •No configurable cable length.

    •Suitable for cable carriers.

    •Pin configuration is straight.

    •Unshielded construction.

Specifications:

 Cable Length 5 m

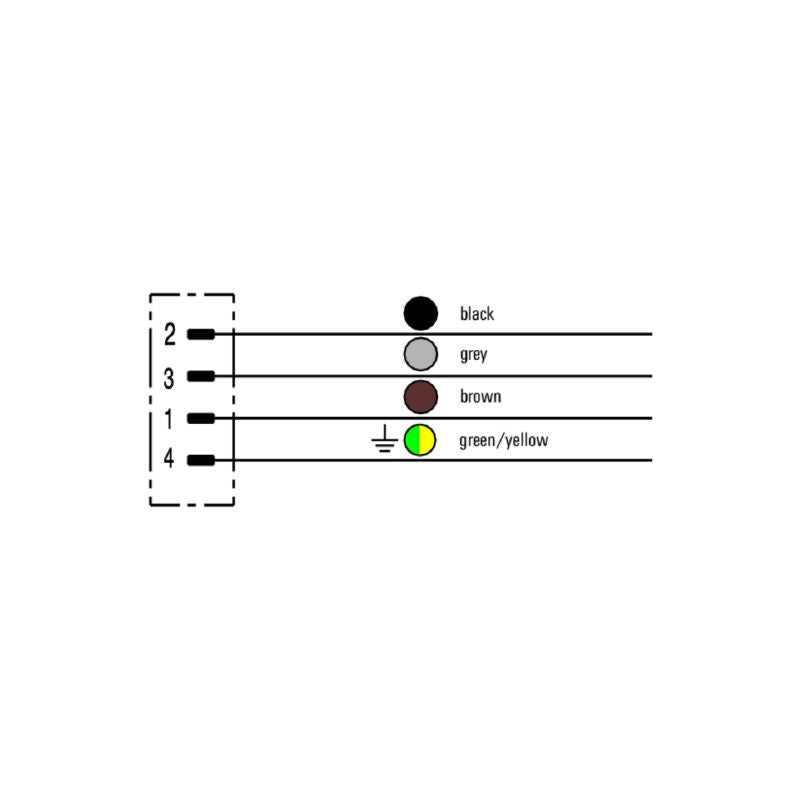

 Number of Poles 4 (3 + PE)
 Core Cross-Section 1.5 mm²
 Outside Diameter 9.6 mm ± 0.3 mm
 Nominal Current 12 A
 Nominal Voltage 600 V
 Temperature Range, Moving -40...80 °C
 Temperature Range, Stationary -50...80 °C
 Protection Degree IP67
 Housing Main Material PUR
 Insulation Resistance 10^8 Ω
 Plugging Cycles ≥ 100
 Bending Cycles 10 Mio
 Acceleration 5 m/s²
 Speed 5 m/s
 Halogen No
 LED No
 Sheathing Colour black
 Plug, Left M12, S-coded, IP67, male contact, straight, Plastic, unshielded
 Plug, Right free conductor end
