1964301000 - 10m M8/M12 Connecting Cable for Sensors & Actuators

1964301000 - 10m M8/M12 Connecting Cable for Sensors & Actuators

SKU: SKU: 1964301000   Download PDF

Select a Variant:
  • 1964301000 - 10m M8/M12 Connecting Cable for Sensors & Actuators
Qty:
Regular price Now $33.16   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $33.16 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

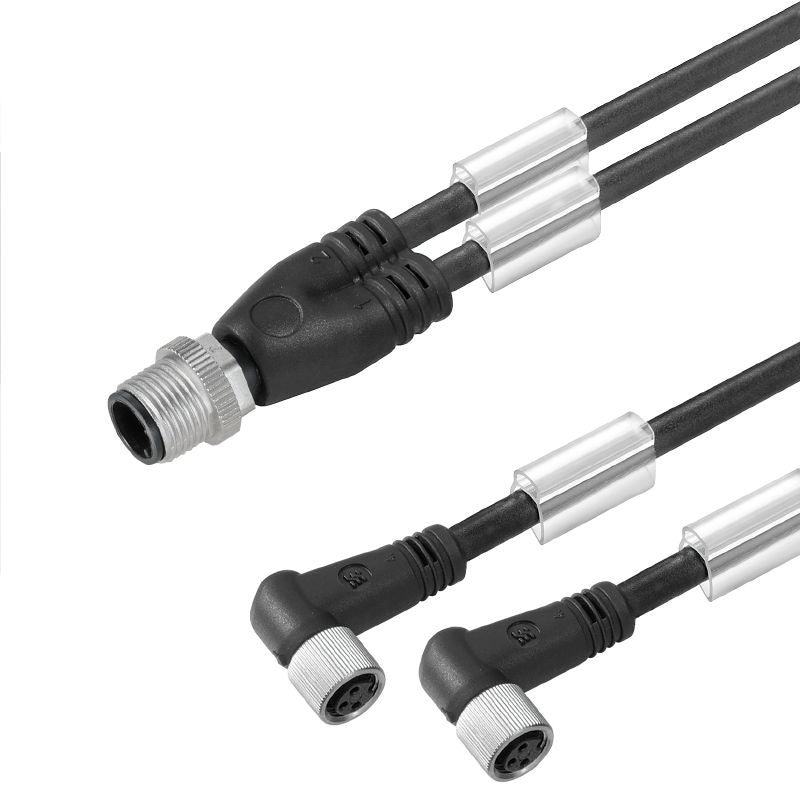

Introducing a specialized connecting cable tailored for sensor and actuator systems With a generous length of 10 meters, this cable incorporates a three-pin configuration with straight pins, ensuring robust connectivity It features twin cabling and comes equipped with two angled sockets, allowing versatile installation options The unshielded design foregoes an LED indicator, making it straightforward and efficient for various applications.

Encased in a halogen-free PUR sheath, this cable prioritizes safety and environmental considerations.

Features and Benefits:

    •Sheath material is PUR.

    •Environmental compliance with RoHS and REACH.

    •Hydrolysis and microbe resistant.

    •Gold-plated contacts.

    •Suitable for cable carriers.

Specifications:

 Cable length 10 m
 Number of poles 3
 Outer diameter 4.1 mm ± 0.2 mm
 Nominal current 4 A
 Nominal voltage 60 V
 Insulation resistance 10^8 Ω
 Bending cycles 12 Mio
 Temperature range, moving -25...80 °C
 Temperature range, stationary -40...80 °C
 Protection degree IP67, IP68 when screwed in, IP65, IP66
 Bending radius, min., moving 10 x cable diameter
 Bending radius, min., stationary 5 x cable diameter
