1962630000 - M12 Field Attachable Connector for 4-6mm Cables

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

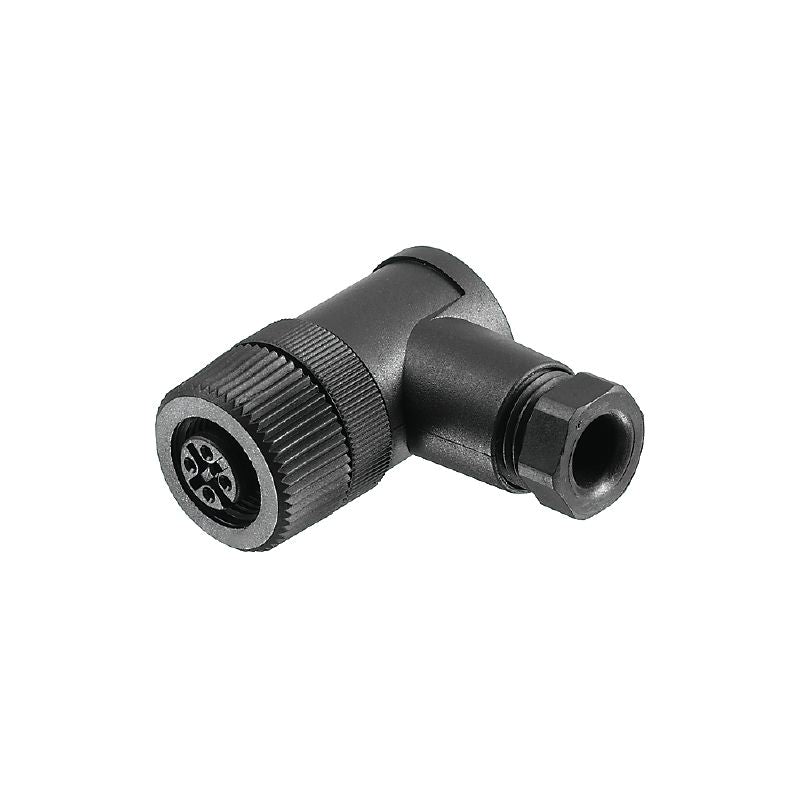

Introducing the SAIBWS-K-5A-4/6-M12, a reliable M12 connector engineered for easy field attachment This connector adheres to RoHS standards and carries UL certificate number E307231, ensuring compliance with specific environmental regulations Constructed with a robust plastic housing, it accommodates cable diameters from 4 mm to 6 mm Rated for a maximum current of 4 A and capable of handling up to 60 V, it meets various industry standards, including IEC 61076-2-101, and features up to 5 poles for versatile applications.

Features and Benefits:

•It is gender-specific with a female contact..

•Offers good insulation resistance with up to 10^8 Ω..

•Rated for over 50 plugging cycles..

•Made from durable materials with an IP67 protection degree..

•The connector's temperature range is from -40 to +85 °C..

Specifications:
