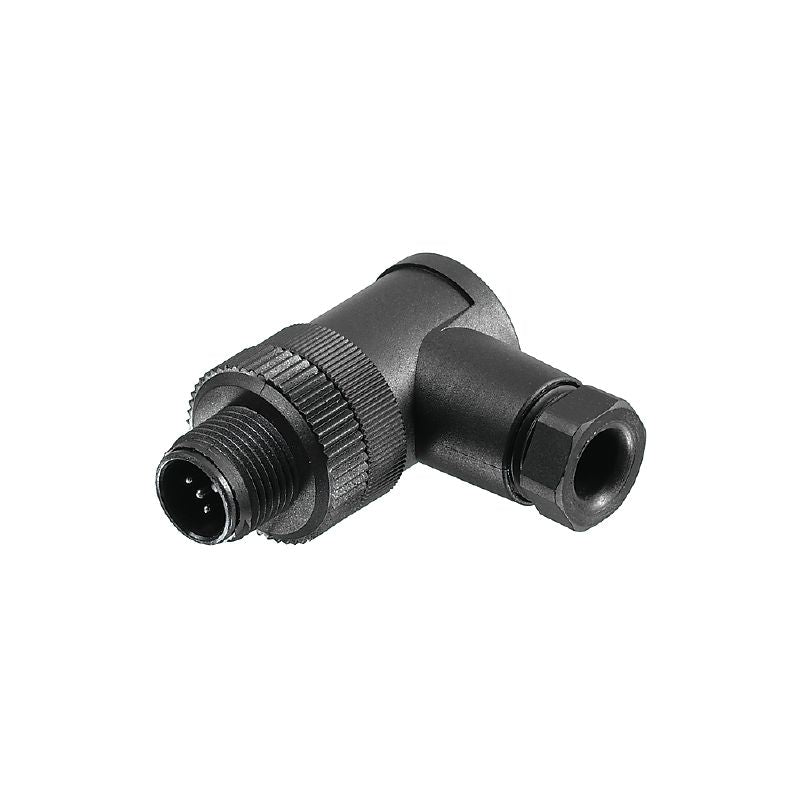

1962620000 - M12 Male Connector, IP67, 4A, Cable 4-6mm

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a versatile M12 field attachable connector that meets rigorous RoHS standards Weighing just 1587 grams, this connector is engineered for durability and functionality It accommodates cable diameters ranging from 4 mm to 6 mm and features an A-coded configuration With the ability to handle conductor cross-sections from 014 mm² to 075 mm², this male connector is crafted from PA material and includes a contact surface composed of CuSnZn.

It boasts a remarkable insulation resistance of 10^8 ohms, supports a nominal current of 4 A, and operates effectively at a nominal voltage of 250 V Designed with practicality in mind, this connector includes 4 poles and is rated for a minimum of 50 plugging cycles It is suitable for environments with a pollution severity level of 3 and a protection rating of IP67, ensuring reliable performance even in challenging conditions.

Additionally, it can withstand temperatures ranging from -40 °C to +85 °C and features easy-to-use screw and M12 connection types.

Features and Benefits:

•Compliant with RoHS requirements.

•Lightweight at 15.87 grams.

•Flexibility with minimum and maximum cable diameter options.

•Supports a broad range of conductor cross-sections.

•Robust insulation resistance.

•High protection degree with IP67 rating.

Specifications:
