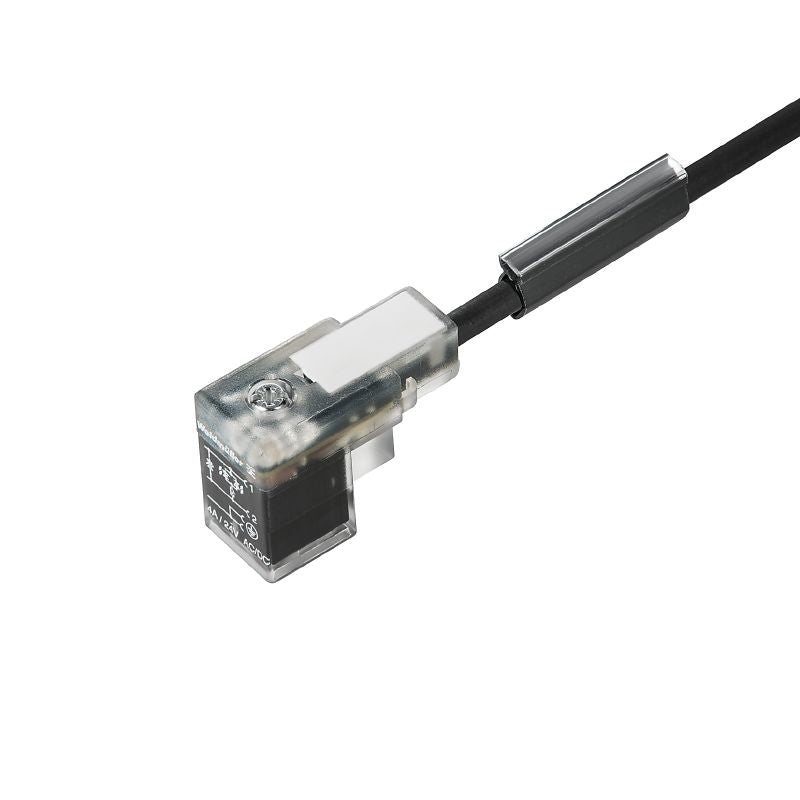

1935980500 - 5m Black Valve Cable with DIN C Plug (No Connector)

1935980500 - 5m Black Valve Cable with DIN C Plug (No Connector)

SKU: SKU: 1935980500 Download PDF

Variant:
  • 1935980500 - 5m Black Valve Cable with DIN C Plug (No Connector)
Regular price Now $13.29
Regular price BEFORE   $0.00 Sale price Now $13.29
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a versatile valve cable, expertly crafted with one end featuring a valve plug according to DIN design C specifications (8 mm) This black cable measures an impressive 5 meters in length, making it perfect for a variety of applications Whether you need a reliable connection for your projects or equipment, this cable delivers durability and performance.

Features and Benefits:

    •Compliant with RoHS without exemption.

    •No SVHC above 0.1 wt%.

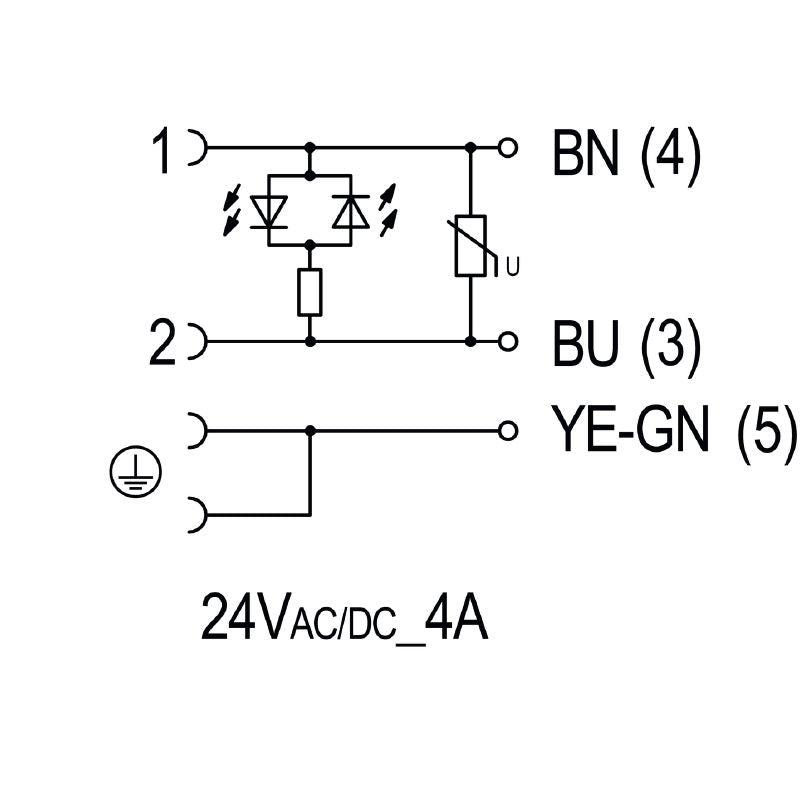

    •Fitted with protective circuits.

    •LED indicator present.

    •Suitable for cable carriers.

Specifications:

 Cable length 5 m
 Core cross-section 0.5 mm²
 Number of poles 3
 Outside diameter 4.6 mm ± 0.2 mm
 Temperature range, moving -25...80 °C
 Temperature range, stationary -50...80 °C
 Nominal current 4 A
 Nominal voltage 24 V
 Protection degree IP67 when screwed in
 Temperature range of housing -25…+80 °C
 Version One end without connector - valve plug
 Coding DIN design C (8 mm)
