1906390000 - M12 A-Coded Connector, IP67, 4-6mm Cable, Gold-Plated Contacts

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

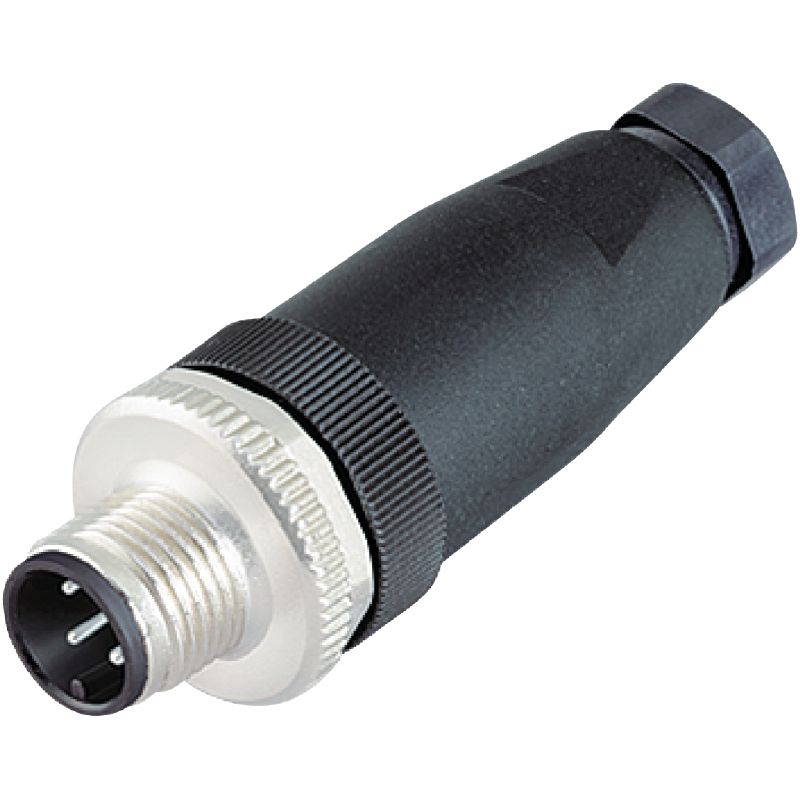

Introducing the M12 field attachable connector, engineered for robust performance with a cable diameter range of 4 mm to 6 mm Its A-coded configuration supports conductor cross-sections between 014 mm² and 05 mm² This connector features male, gold-plated contacts for optimal connectivity Constructed from durable PA material, it boasts an impressive insulation resistance of 10^8 Ω, with a nominal current capacity of 4 A and a nominal voltage of 60 V.

With an IP67 rating, this connector is built to endure harsh conditions, ensuring reliability even in the most challenging environments It supports a minimum of 100 plugging cycles and operates efficiently within a temperature spectrum of -40°C to +85°C.

Features and Benefits:

•Gold-plated contact surface.

•IP67 protection degree.

•Tension-clamp connection type.

•Designed for up to 5 poles.

•Compliant with RoHS standards.
