1474440000 - Halogen-Free Conductor Marker for 7-40mm Cables, RoHS Compliant

1474440000 - Halogen-Free Conductor Marker for 7-40mm Cables, RoHS Compliant

SKU: 1474440000   Download PDF

Select a Variant:
  • 1474440000 - Halogen-Free Conductor Marker for 7-40mm Cables, RoHS Compliant
Qty:
Now $9.69   Web pricing policy
BEFORE   $0.00 Now $9.69 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

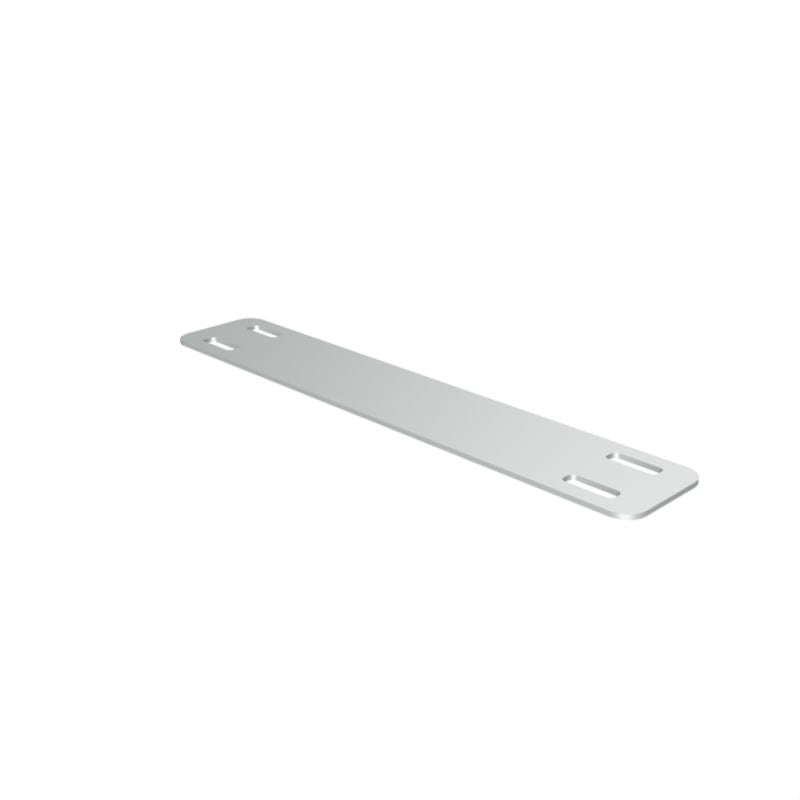

Introducing the SFX-M 11/60-5 AL SDR conductor and cable marker that complies with RoHS regulations This single marker, made of halogen-free anodized aluminum, is designed for conductors with diameters between 7 mm and 40 mm Engineered to perform in temperatures ranging from -55 °C to 130 °C, it’s suitable for a multitude of environments The marker is compatible with plastic cable ties and is especially useful in the process and energy industries.

Custom printing options are available to meet your specific needs through the M-Print PRO file, ensuring that your markers are tailored to your requirements.

Features and Benefits:

    •Compatible with conductors with a cross-section from 16 mm² to 500 mm².

    •Constructed from halogen-free anodized aluminum.

    •Operating temperature span of -55 to 130 °C.

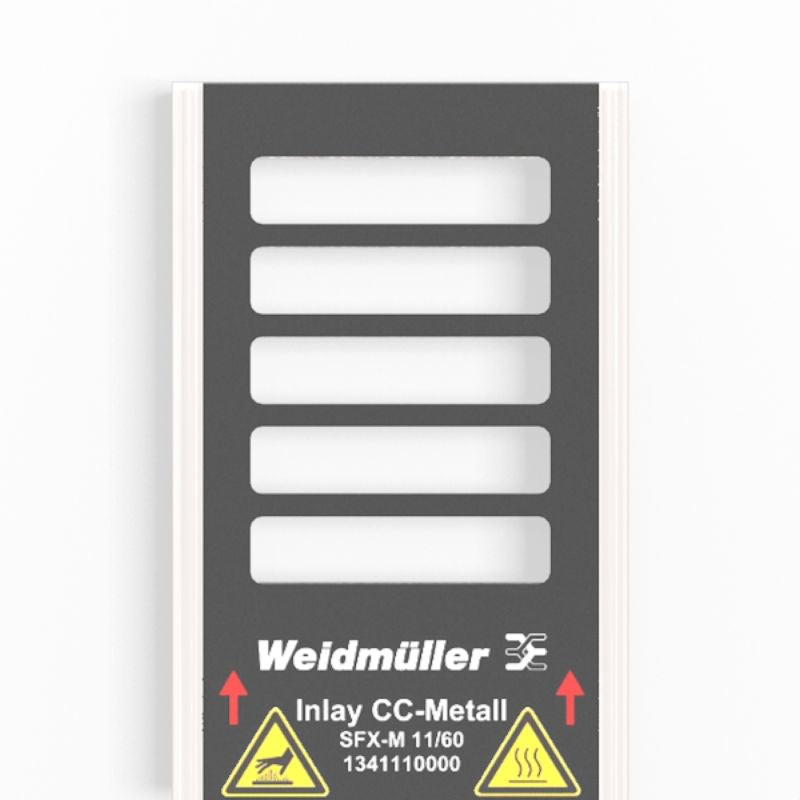

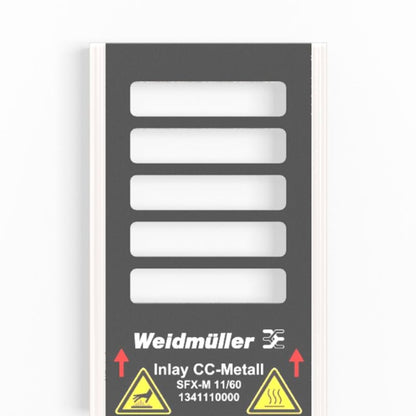

    •Requires only a single marker per MetalliCard.

    •Suitable for flat cable ties.

    •Suitable for marking conductors and cables in process and energy industries.

Specifications:

 Depth 0.8 mm
 Height 60 mm
 Width 11 mm
 Net weight 0.834 g
 Conductor O.D. range 7 - 40 mm
 Max conductor O.D. 40 mm
 Min conductor O.D. 7 mm
 Cross-section for connected wire 16 - 500 mm²
 Operating temperature range -55...130 °C
 Number of markers per packaging unit 1
 Orientation of print horizontal and vertical
 Basic material Anodized aluminium
 Type of printing To customer specification
 Size of labelling field 11.2 x 45 mm
 RoHS Compliance Status Compliant without exemption
 REACH SVHC No SVHC above 0.1 wt%
 ETIM classifications {'ETIM 6.0': 'EC001530', 'ETIM 7.0': 'EC001530', 'ETIM 8.0': 'EC001530', 'ETIM 9.0': 'EC001530', 'ETIM 10.0': 'EC001530'}
 ECLASS classifications {'ECLASS 9.0': '27-40-04-01', 'ECLASS 9.1': '27-40-04-01', 'ECLASS 10.0': '27-40-04-01', 'ECLASS 11.0': '27-28-11-02', 'ECLASS 12.0': '27-28-11-02', 'ECLASS 13.0': '27-28-11-02', 'ECLASS 14.0': '27-28-11-02', 'ECLASS 15.0': '27-28-11-02'}
