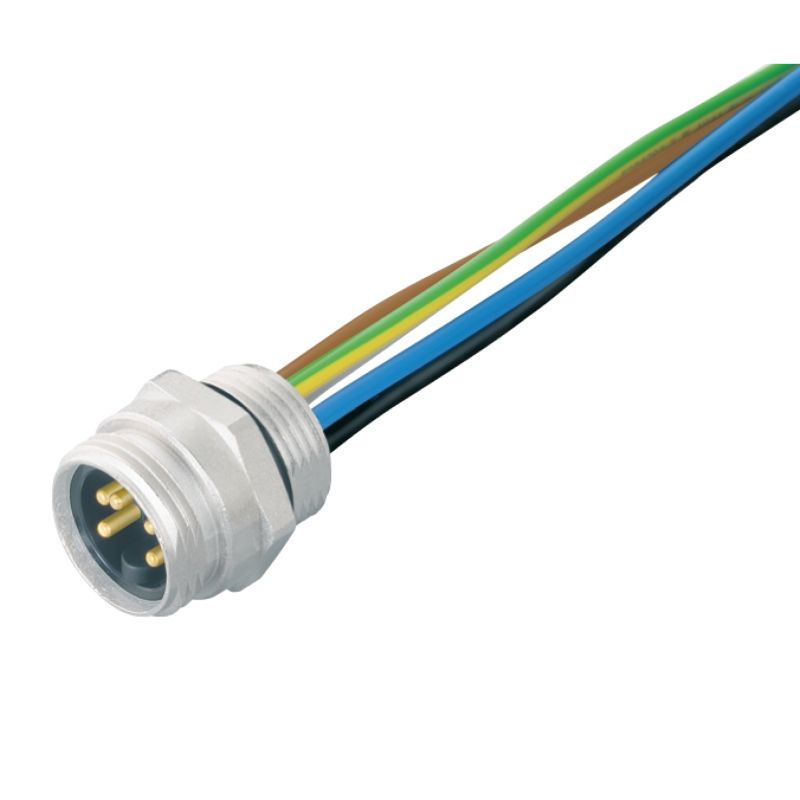

1471490000 - 7/8" Plug Connector, 5 Poles, 0.2m Cable Length

1471490000 - 7/8" Plug Connector, 5 Poles, 0.2m Cable Length

SKU: SKU: 1471490000 Download PDF

Variant:
  • 1471490000 - 7/8" Plug Connector, 5 Poles, 0.2m Cable Length
Regular price Now $14.81
Regular price BEFORE   $0.00 Sale price Now $14.81
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a versatile product equipped with integrated plugs, featuring a 7/8 inch mounting thread and five poles With a cable length of 02 meters, it’s engineered for various applications while adhering to RoHS compliance This item is certified by cURus under E307231, confirming its commitment to environmental standards Perfect for multiple uses, it combines functionality with compliance.

Features and Benefits:

    •RoHS compliant with exemption.

    •Lead-free contact material.

    •Gold-plated contact surface.

    •Zinc diecast housing material.

    •IP67 protection degree when screwed in.

    •Available with a cable gland size of M20.

    •Designed for more than 100 plugging cycles.

    •Temperature range of housing from -25 to +85 °C.

Specifications:

 Core cross-section 0.75 mm²
 Nominal current 8 A
 Nominal voltage 300 V
 Number of poles 5
 Rated voltage 300 V
 Rated impulse voltage 4000 V
 Tightening torque 1.5 Nm
 Strand / cable length 0.2 m
