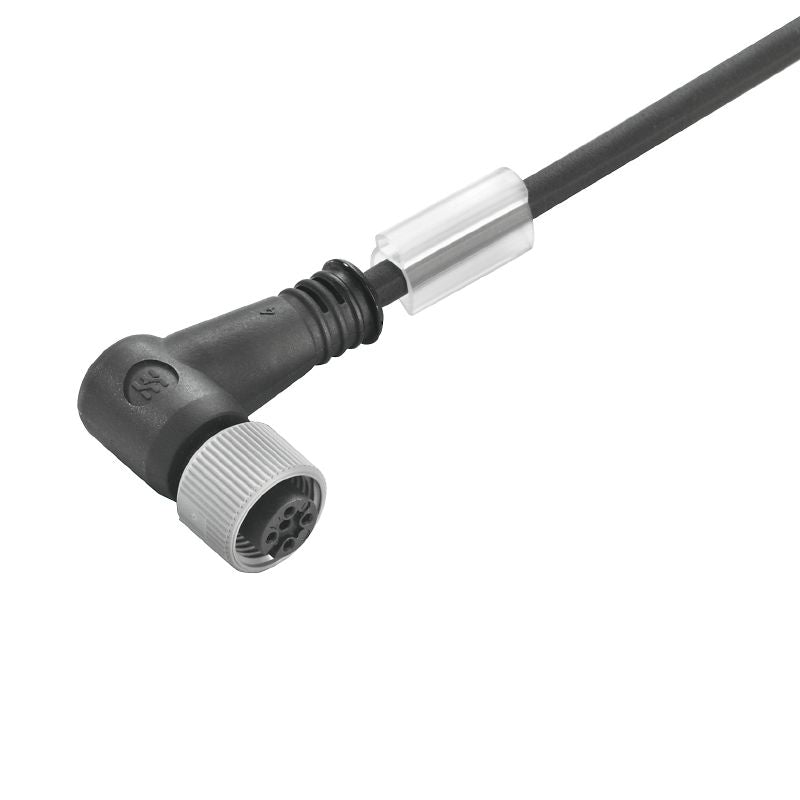

1466010300 - 3m M12 Sensor/Actuator Cable, 5 Poles, PVC Sheath

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

This versatile sensor/actuator cable features a unique M12 configuration with an unconnected end Measuring three meters in length, it consists of five poles and is equipped with an angled socket for optimized connectivity Made from durable PVC, this cable adheres to halogen-free standards, ensuring safety and performance without any added shielding or LED features Perfect for a variety of applications!.

Features and Benefits:

•No configurable cable length.

•Core cross-section of 0.34 mm².

•Outer diameter of 5.7 mm ± 0.2 mm.

•Temperature range for moving applications from -5 to 80 °C.

•Temperature range for stationary applications from -30 to 80 °C.

•A-coded connection.

•M12 connection thread.

•Gold-plated contact surface.

•Made with PUR housing.

•IP65 to IP68 protection degree when screwed in.

•Socket, angled design.

Specifications:
