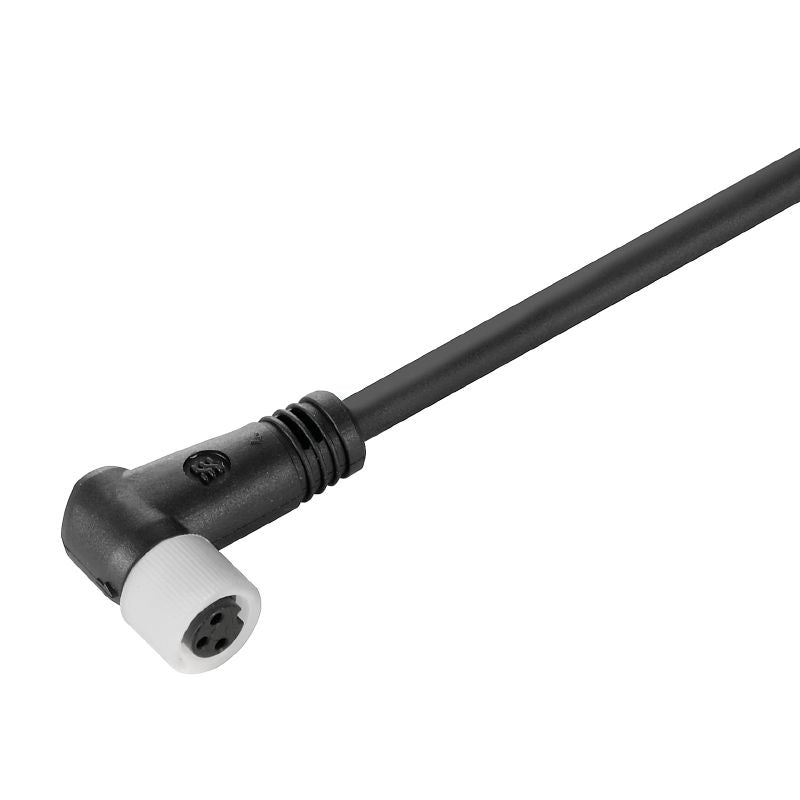

1465891000 - 10m PVC Sensor/Actuator Cable with 3 Poles

1465891000 - 10m PVC Sensor/Actuator Cable with 3 Poles

SKU: SKU: 1465891000

Variant:
  • 1465891000 - 10m PVC Sensor/Actuator Cable with 3 Poles
Regular price Now $11.63
Regular price BEFORE   $0.00 Sale price Now $11.63
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Discover the versatile sensor/actuator cable, ideal for seamless connectivity with M12 and M8 systems This 10-meter cable features three poles and is engineered without shielding or an LED for straightforward functionality Crafted from halogen-free PVC sheath material, this product has been rigorously tested to ensure ROHS compliance and adherence to various technical standards Perfect for your connectivity needs, it offers reliability and performance in one package.

Features and Benefits:

    •Three poles configuration.

    •No shielding.

    •Cable sheath made of PVC.

    •Halogen content is present.

    •Orientation is angled.

    •Net weight of 290g.

Specifications:

 Cable length 10 m
 Core cross-section 0.25 mm²
 Outer diameter 4.5 mm ± 0.2 mm
 Nominal current 4 A
 Nominal voltage 60 V
 Temperature range (moving) -5...80 °C
 Temperature range (stationary) -30...80 °C
 Protection degree IP65, IP66, IP67, IP68
 Insulation resistance 10^8 Ω
 Housing main material PUR
 Plugging cycles ≥ 100
