1463650200 - 20m M12 X-Type Cat.6A IP67 System Cable

1463650200 - 20m M12 X-Type Cat.6A IP67 System Cable

SKU: 1463650200 Download PDF

Variant:
  • 1463650200 - 20m M12 X-Type Cat.6A IP67 System Cable
Now $206.61
BEFORE   $0.00 Now $206.61
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

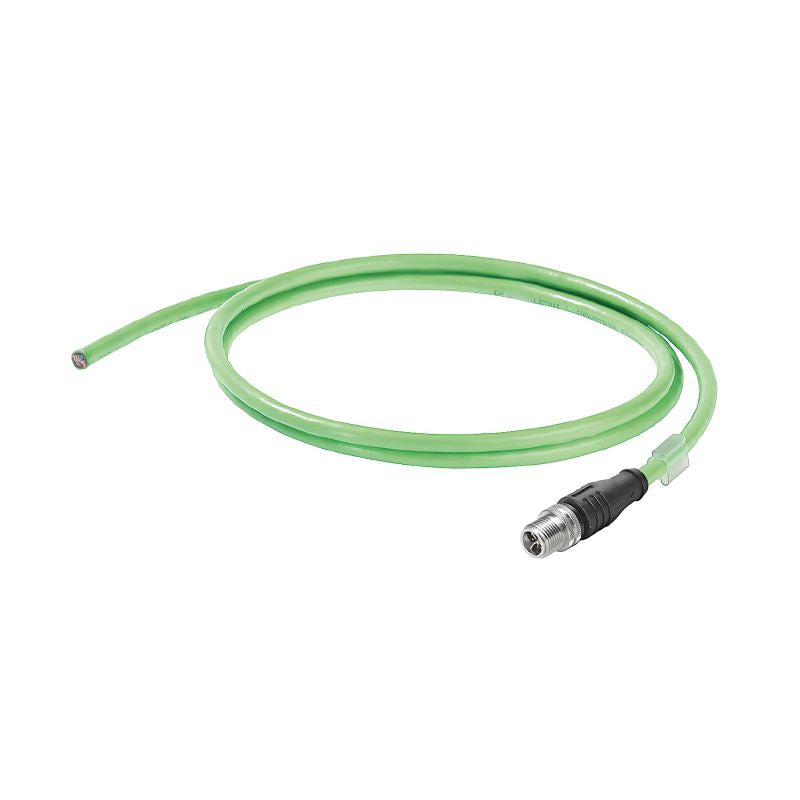

Introducing our reliable system cable equipped with an M12 X-type straight male connector, engineered to meet IP67 standards for superior dependability Designed for optimal performance, it complies with Cat6 A / Class E A specifications according to ISO/IEC 11801 2010 Made from durable PUR material, this cable spans a generous length of 20 meters, making it versatile for a range of applications.

Features and Benefits:

    •Compliant with RoHS regulations.

    •40°C to 80°C operating temperature.

    •Halogen-free construction.

    •Minimizes smoke emission according to IEC standards.

    •Very good abrasion resistance.

    •Resistance to oils.

    •IP67 rating.

Specifications:

 Cable Structure Twisted pair
 Sheath Diameter (max) 6.7 mm
 Sheath Diameter (min) 6.1 mm
 Wire Pair Shielding Aluminium foil
 Characteristic Impedance 100 ± 5 Ω at 100MHz
 Loop Resistance 290 Ω/km
 Signal Propagation Time 5.2 ns/m
 Cable Category Cat.6 A / Class E A
 Test Voltage 700 V rms, 50 Hz, 1 min
