1463650050 - 5m PUR System Cable, M12 X-Type Male Connector, IP67

1463650050 - 5m PUR System Cable, M12 X-Type Male Connector, IP67

SKU: SKU: 1463650050 Download PDF

Variant:
  • 1463650050 - 5m PUR System Cable, M12 X-Type Male Connector, IP67
Regular price Now $85.16
Regular price BEFORE   $0.00 Sale price Now $85.16
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

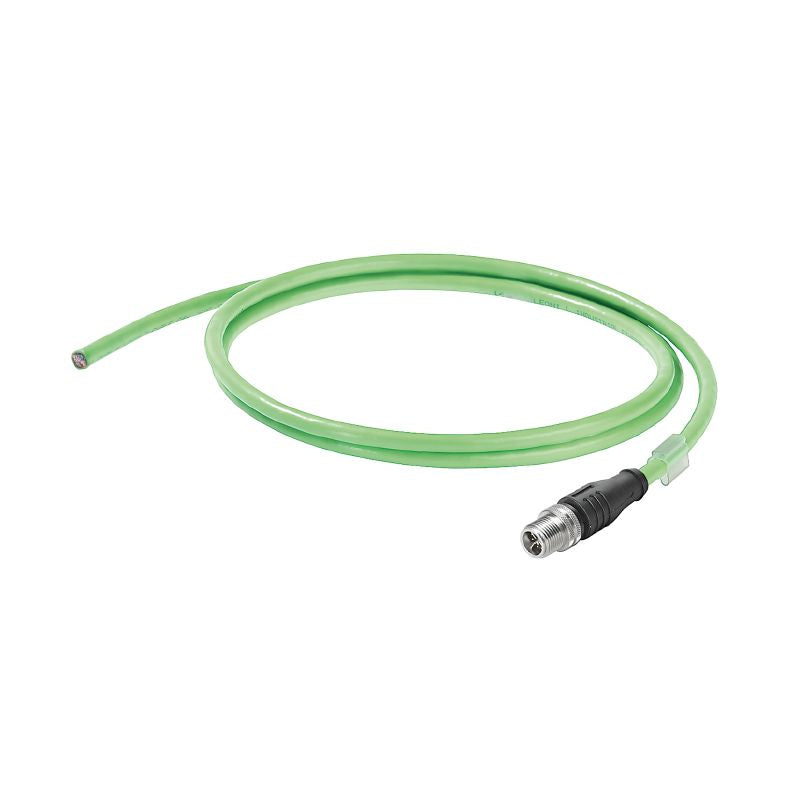

Introducing a reliable system cable equipped with an M12 X-type straight male connector, engineered to meet an IP 67 rating for superior protection against dust and moisture This cable fulfills the stringent Cat6 A / Class E A standards in accordance with ISO/IEC 11801 2010 specifications At a length of 5 meters, it is constructed from durable polyurethane (PUR) material and adheres to RoHS compliance, making it an excellent choice for various applications.

Features and Benefits:

    •IP 67 rated connector for reliable performance in harsh environments.

    •Made from halogen-free materials.

    •Good abrasion resistance.

    •Impervious to smoke.

    •Designed for high-speed data transmission with a rate of up to 10 Gbit/s.

    •Resistance to oils and flame spread according to relevant IEC standards.

Specifications:

 Length 5 m
 Operating temperature -40 °C to 80 °C
 Installation temperature -20 °C to 60 °C
 Category Cat.6 A / Class E A (ISO/IEC 11801 2010)
 Characteristic impedance 100 ± 5 Ω at 100MHz
 Loop resistance 290 Ω/km
 Signal propagation time 5.2 ns/m
 Transmission rate 10 Gbit/s
 Copper diameter 0.48 µm
 Insulation cross-section 0.98 mm
 Sheath diameter, max 6.7 mm
 Sheath diameter, min 6.1 mm
